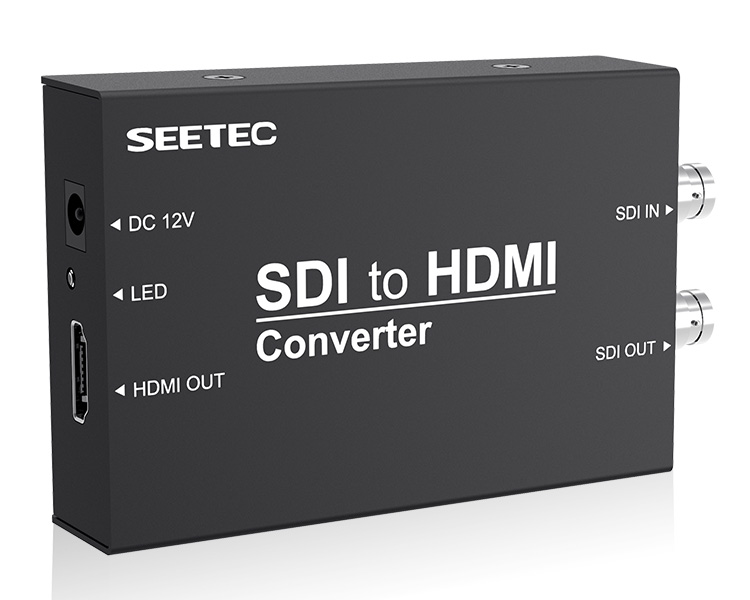

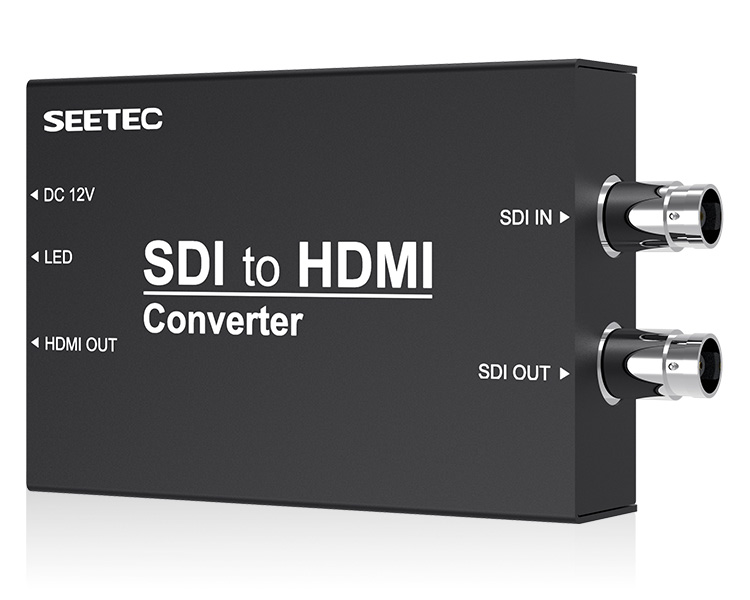

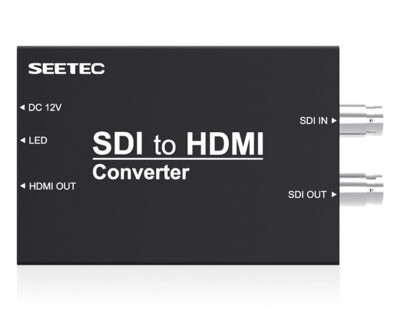

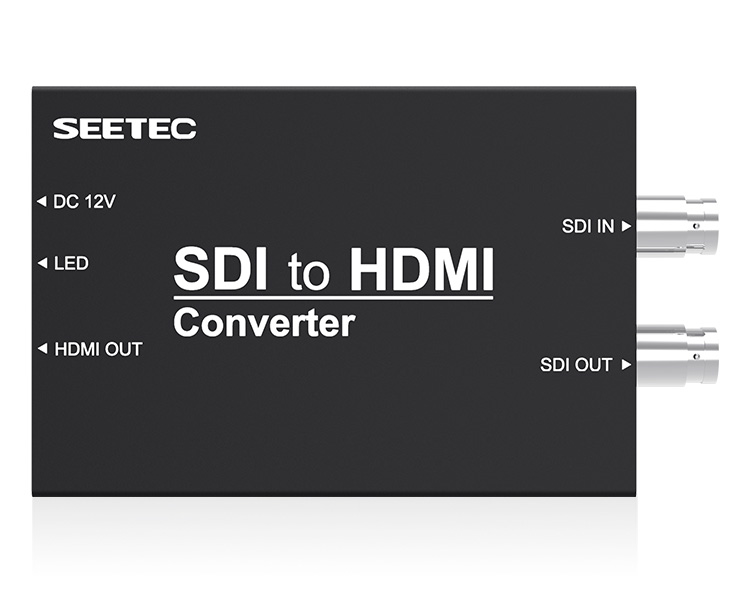

SEETEC SDI to HDMI Converter STH
Model
STH (SDI to HDMI Converter)
Input
1 X BNC 3G/HD/SD-SDI
Output
1 X BNC 3G/HD/SD-SDI
1 X HDMI HDMI
SDI Support Format
3G-SDI:1080P(60/59.94/50)
HD-SDI:1080P(30/29.97/25/24)
1080I(60/59.94/50)
1080PsF24
720P(60/59.94/50/30/29.97/25/24)
HDMI Support Format
1080P(60/59.94/50/30/29.97/25/24)
1080I(60/59.94/50)
1080PsF24
720P(60/59.94/50/30/29.97/25/24)
General
Power Consumption ≤3W
Input Voltage DC 5～24V
Connector DC 12V

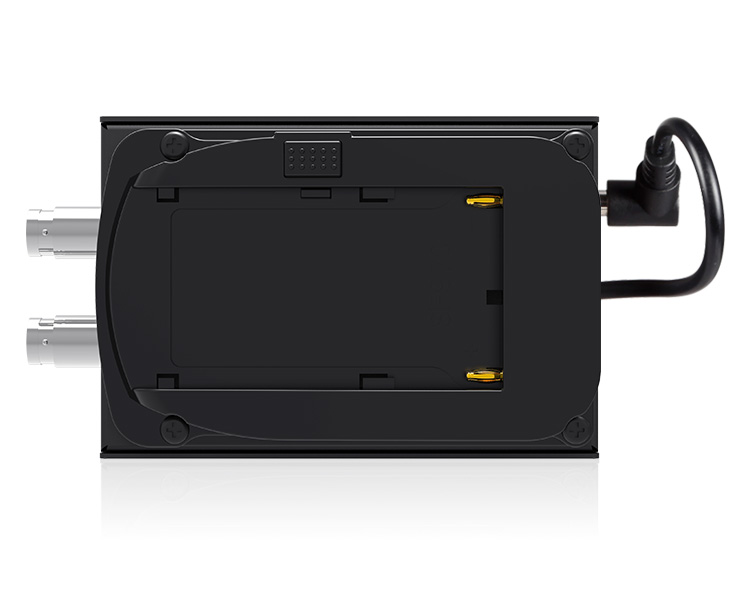

Battery Plate F970 (Standard); D28S, E6 (Optional)

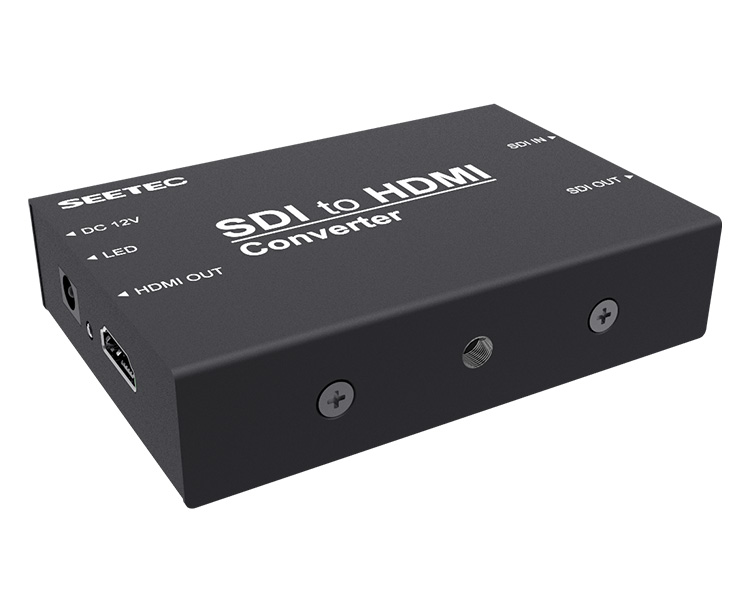

Install Way 1/4″-20 Thread Socket
Working Temperature -20°C~60°C
Storage Temperature -30°C~70°C
Unit Size (mm) 98.8L×67.4H×22.8D mm
Unit Weight 180g/210g (With F970 Plate)
- The SEETEC Mini Converters are incredibly tiny broadcast quality video converters that come in three models, SDI ⇌ HDMI Cross Converter, SDI to HDMI Converter , HDMI to SDI Converter.
- Standard “1/4-20”screw threads for flexible installing.
- You get HDMI and professional 3G-SDI connections for working with almost SD and HD formats. Flexible double power supply System that supports F970, D28S, E6, battery plate and also power adapter.

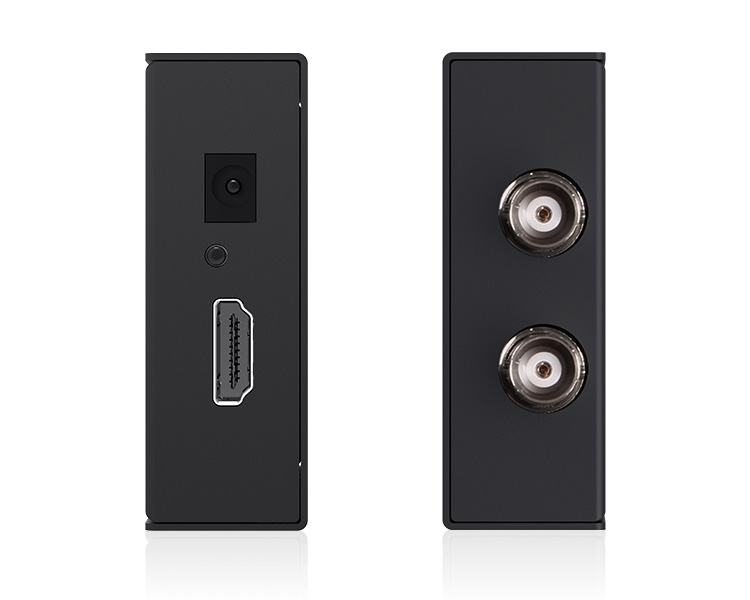

- SDI to HDMI Converters: 1x SDI input, 1x HDMI output, 1x SDI output
- Flexible Double Power Supply System.
- Simple, Compact and Rugged.
- Built for any environment!
- SEETEC Mini Converters are designed to be used anywhere, machined out of a solid block of metal! You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.
http://www.seetec.cn/ShowInfo.aspx?id=30&py=SDI-to-HDMI-Converter-STH
If you are interested in our products or need detailed advice, please contact us at the contacts below.
Sales Department
Mob.: +7 747 47 00 950
Email: sales@mediashop.kz
Technical Support and Consultation Department
Mob.: +7 747 47 00 940
Email: Support@mediashop.kz
Or fill in the feedback form and we will contact you in a short time.
