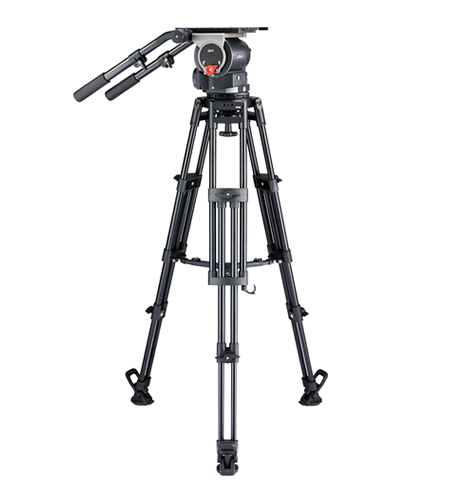

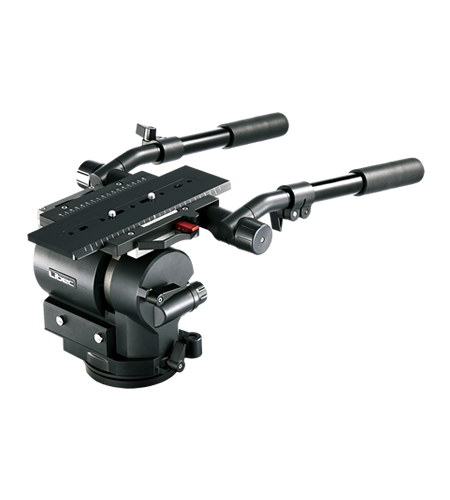

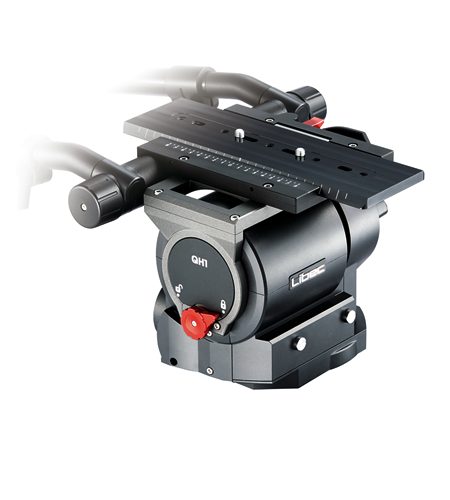

QD-10M Medium Stretch System, QH1 / T150B / BR-6B / FP-6B
QD-10M, Medium Stretch System
QD-10M Medium Stretch System, QH1 / T150B / BR-6B / FP-6B
Counterbalance Range 15 to 35 kg (C.G. 125 mm)
Payload 40 kg
Counterbalance Perfect balance

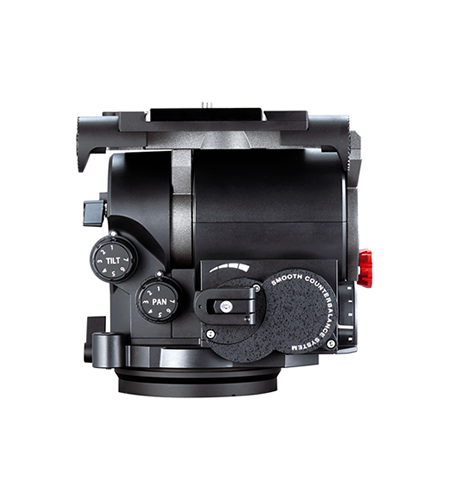

Continuous counterbalance with indicator
Drag mode 7 steps
Drag system Multilayer metal structure
Tilt range +90° / -70°
Temperature range from -20°C to +60°C
Bubble level Illuminated

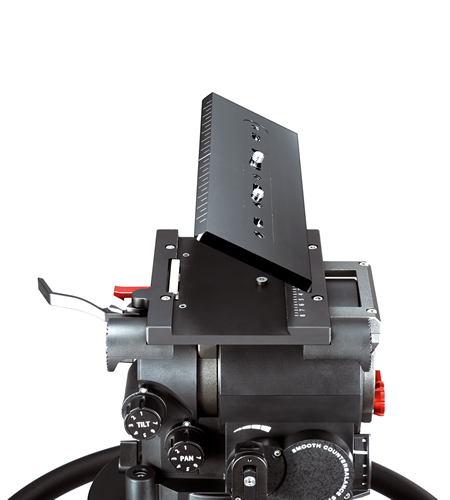

Chamber platform Quick-release
Sliding range ±75 mm

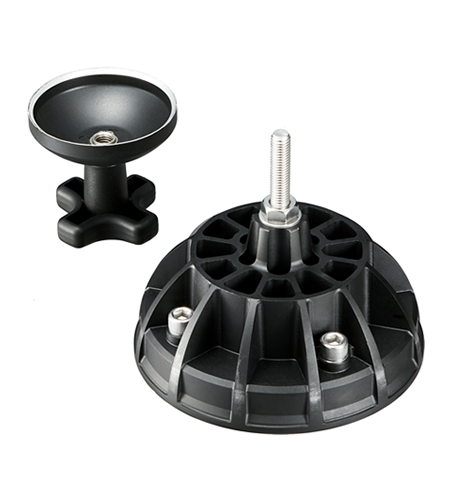

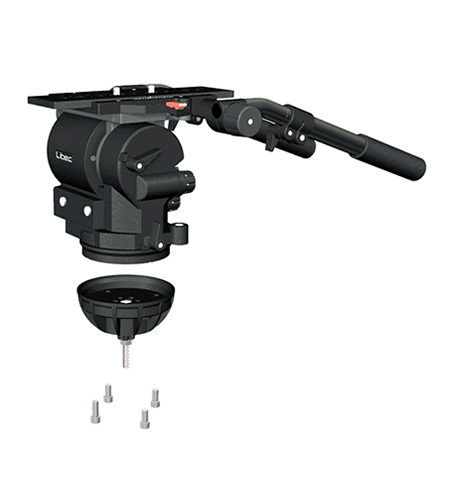

Head mount 150mm ball / Flat base with 4 bolts
Platform mount Screws 3/8″ x 2
Spare screws Screws 3/8″ x 2
Weight 21.4 kg
Height 97.5 ~ 186 cm
Head mounting screw 150 mm

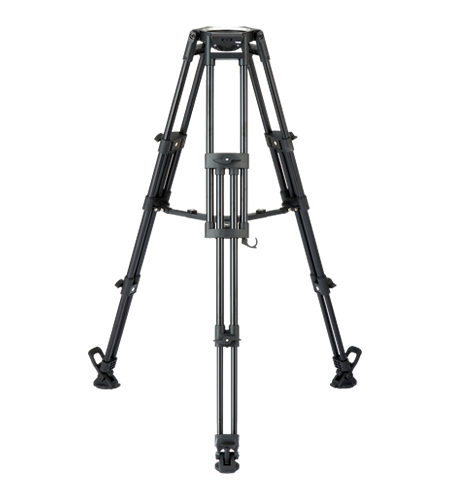

Sections 3 sections (2 steps)
