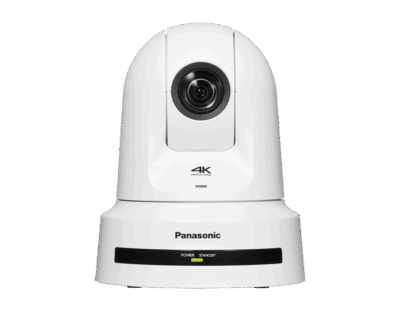

PTZ Camera Systems 4K Integrated Camera AW-UE80W/K

Comprehensive
Power Requirements 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
PoE++* IEEE802.3bt compliant: DC42 to 57 V
(Software authentication (LLDP) is supported)
Current Consumption 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Allowable Humidity Ranges 20 ％ to 90 ％ (no condensation)
Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
Mass Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket),
Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket)
Dimensions (W x H x D) 170.0 mm x 211.0 mm x 171.0 mm
(6.693 inches x 8.307 inches x 6.732inches)

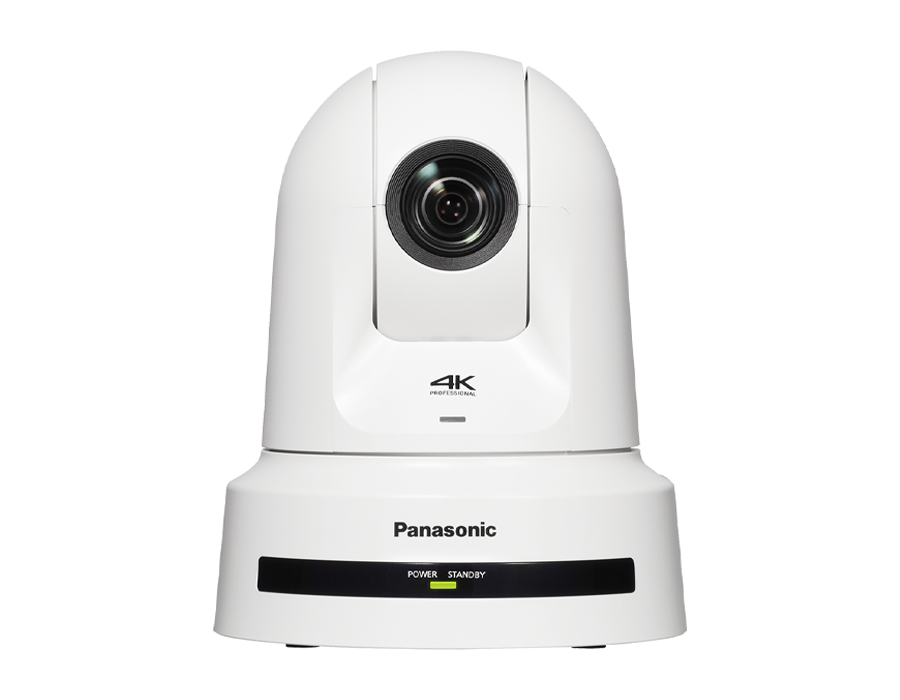

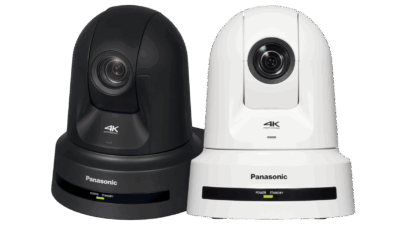

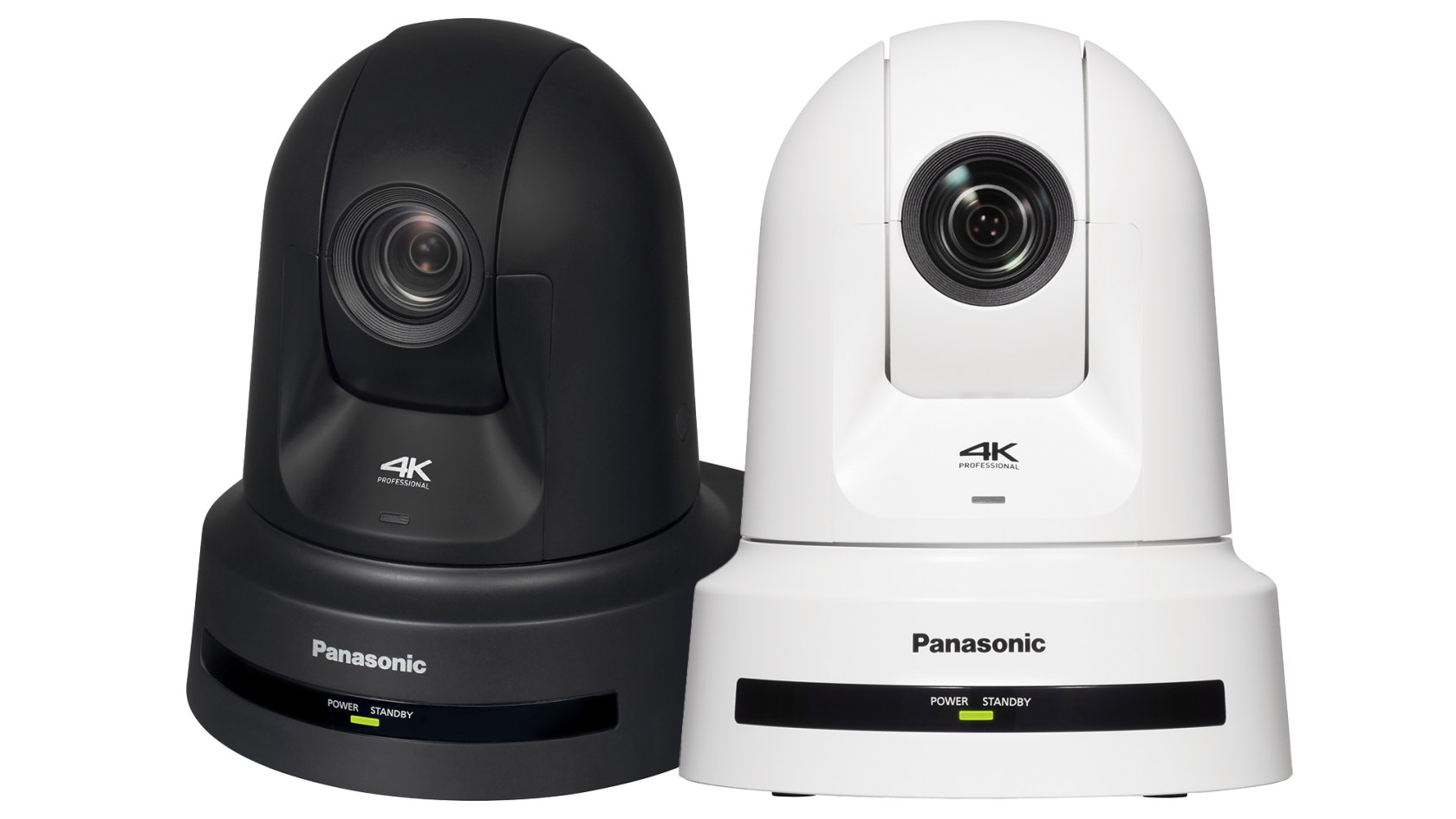

Finish AW-UE80W: White

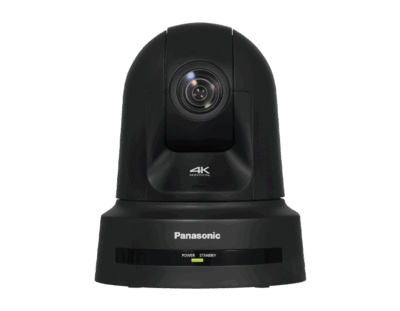

AW-UE80K: Black
Compatible controllers AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1, 2, AK-HRP1005*1, 2, AK-HRP1015*2, AK-HRP250*
Camera part
Image Sensors 1/2.5-type 4K MOS x 1
Effective pixels Approx. 8,490,000 pixel
Lens Motorized Optical 24x zoom, F1.8 to F4.0
[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);
35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
Zoom • Optical zoom: 24x
• i.Zoom UHD 28x, FHD 36x
• Digital extender zoom: 1.4x, 2x
Conversion Lens Not supported
Angle of View Range Horizontal angle of view: 74.1° (wide) to 3.3° (tele)
Vertical angle of view: 46.0° (wide) to 1.9° (tele)
Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Optical Filter Through, 1/4, 1/16, 1/64, IR through
(IR through is used as “night mode”)
Focus Switching between auto and manual
Focus Distance Entire zooming range: 1200 mm (3.9 ft)
Wide end: 100 mm (0.33 ft)
Color Separation Optical System 1MOS
Minimum Illumination 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
Horizontal Resolution 1,500 TV Typ (Center area, UHD mode, wide)
1,000 TV Typ (Center area, FHD mode, wide)
Gain Selection Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB)
Frame Mix Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Electronic Shutter Speed 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan 59.94p/59.94i 60.0 Hz to 7200 Hz
29.97p 30.0 Hz to 7200 Hz
23.98p/24p 24.0 Hz to 7200 Hz
50p/50i 50.0 Hz to 7200 Hz
25p 25.0 Hz to 7200 Hz
Gamma HD / Normal / Cinema1 / Cinema2 / Still Like
White Balance • ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)
• AWB: AWB-A / AWB-B
• VAR (selectable between 2000 K and 15000 K by designating a value)
Chroma Amount Variability OFF, -99 ％ to 99 %
Output Format SDI HD 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just),
23.98p (Native), 720/59.94p, 50p
HDMI 4K 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
HD 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Synchronization System
Internal/External synchronization (BBS/Tri-level sync)
Input

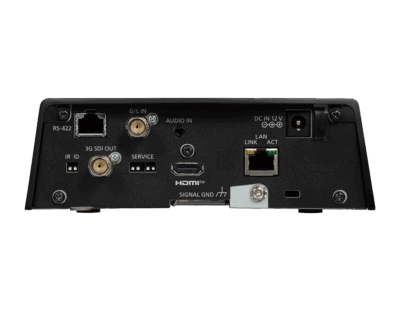

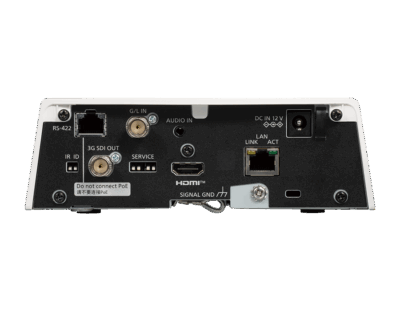

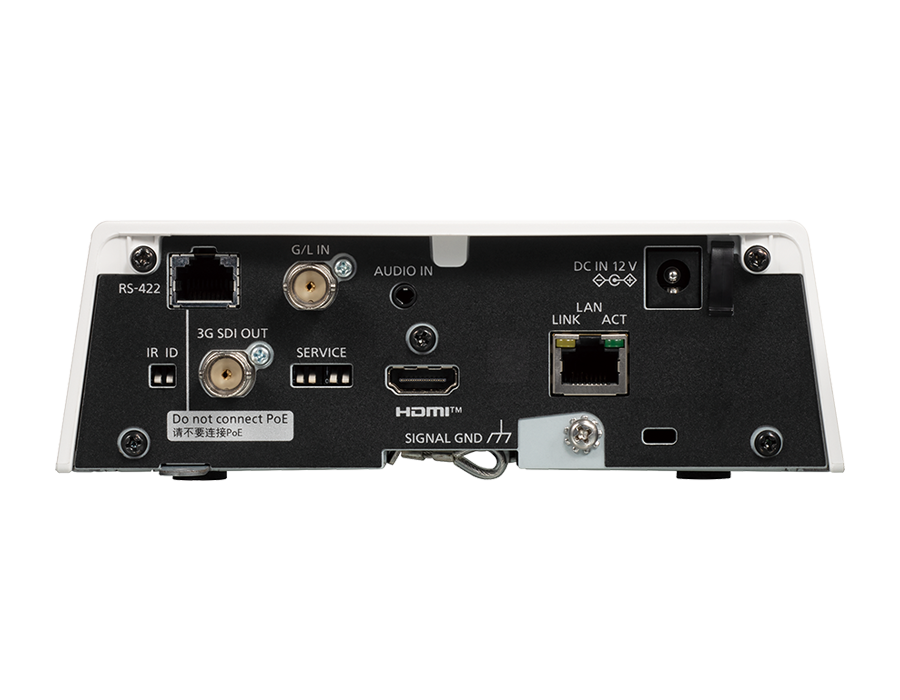

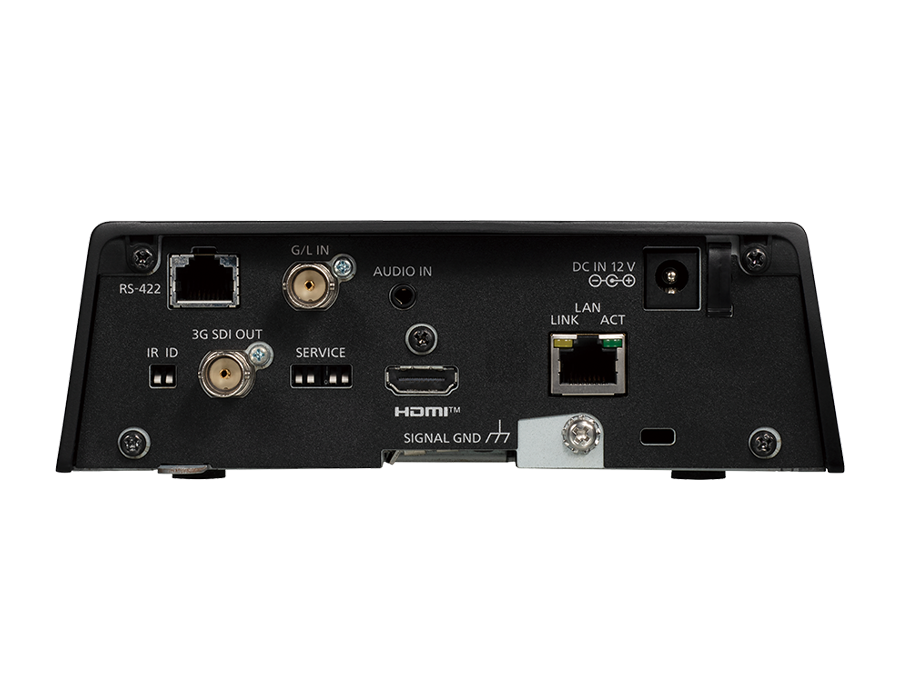

Input Connector DC 12 V IN, G/L IN(BNC)
BBS (Black Burst Sync), tri-level sync supported)
Output
Video Output HDMI HDMI 2.0 connector
4:2:2/10bit
• HDCP is not supported.
• Viera Link is not supported.
3G-SDI OUT SMPTE292M/424M/ 75 Ω(BNC×1)
• Level-A/Level-B supported
Input/output
Input/Output Connector LAN LAN terminal for IP control (RJ-45) 100BASE-TX/1000BASE-T
RS-422 CONTROL IN RS422A(RJ-45)
MIC/LINE input AAC compatibility (compatible with IP only)
Φ3.5 mm stereo mini jack
• During MIC input
Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz)
Supply voltage: 2.5 V±0.5 V (plug-in power compatible)
“• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)
Approx. 20 kΩ (when plug-in power is turned OFF)”
• During LINE input
Input level: -10 dBV
Input impedance: Approx. 3 kΩ
• Input volume variable range: -36 dB to 12 dB (3 dB step)
• Embedded audio output level: -12 dBFS
• Sampling frequency: 48 kHz
• Quantization bit rate: 24 bit (SDI, HDMI), 16 bit (IP)
