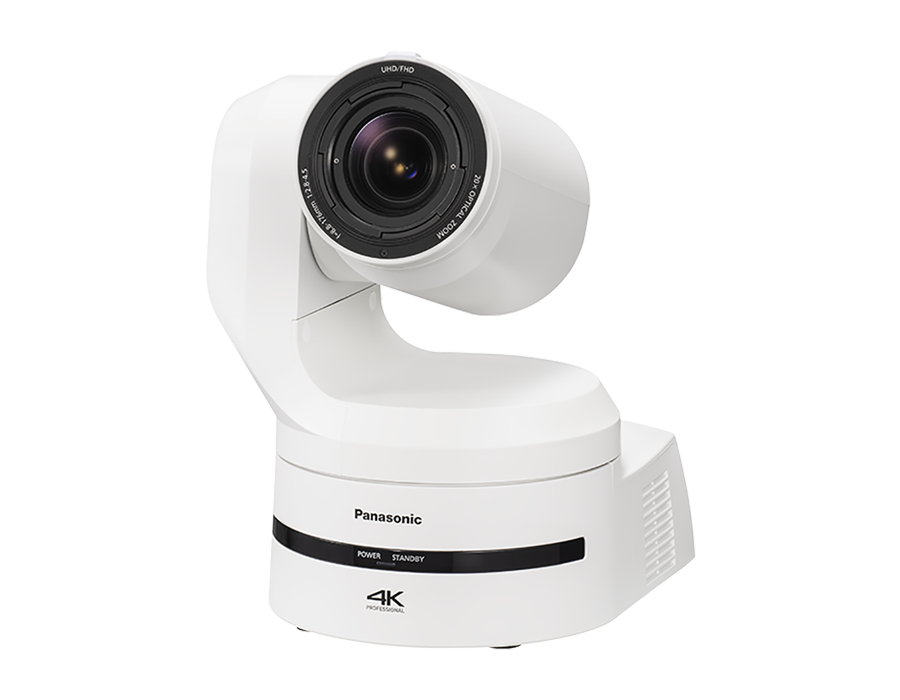

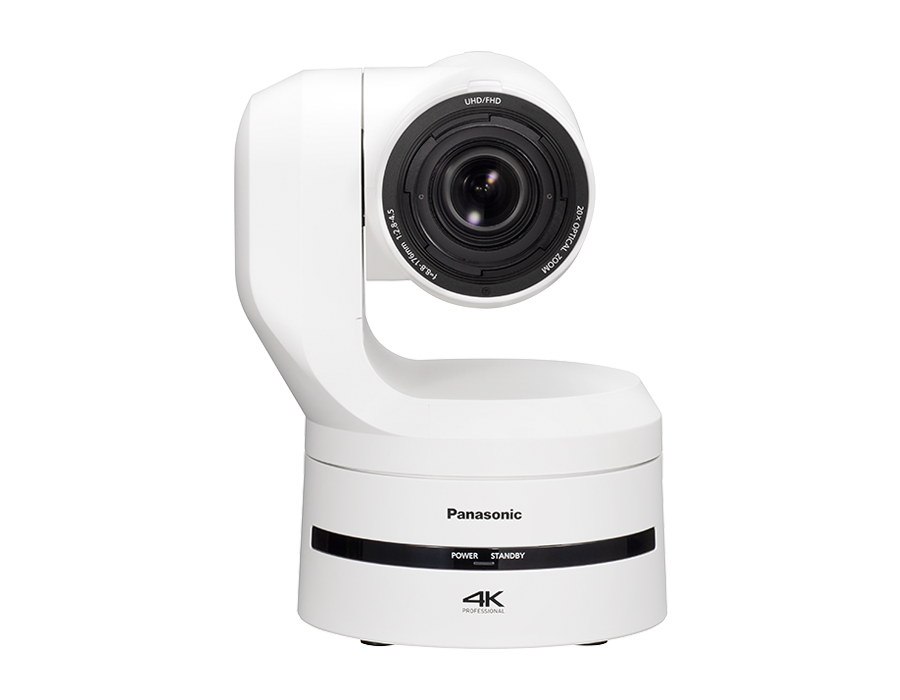

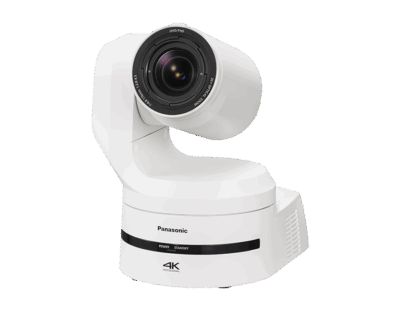

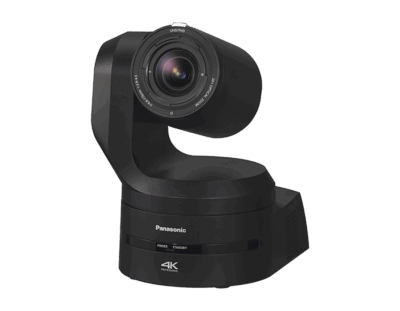

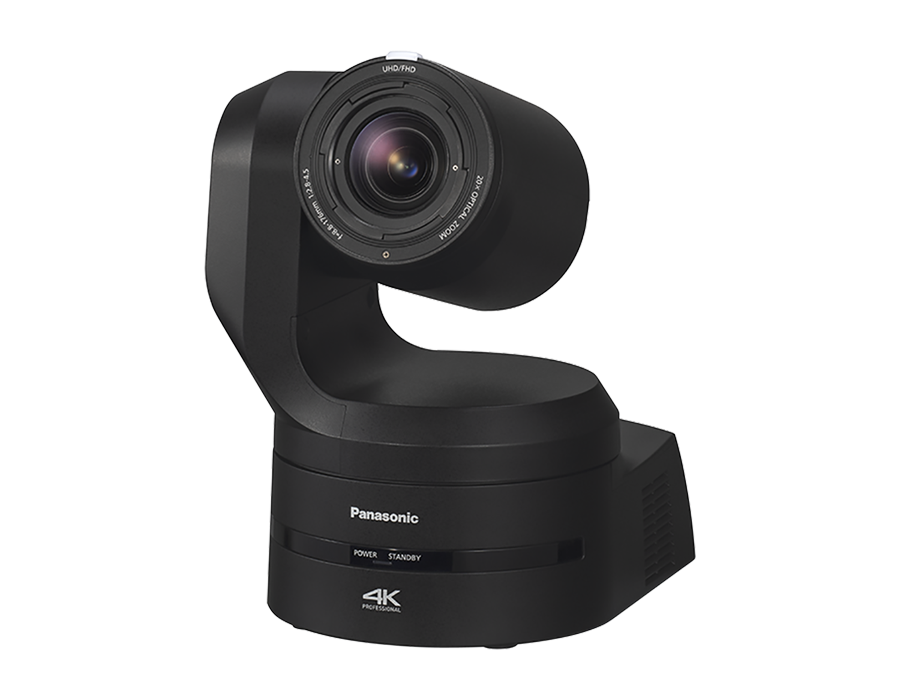

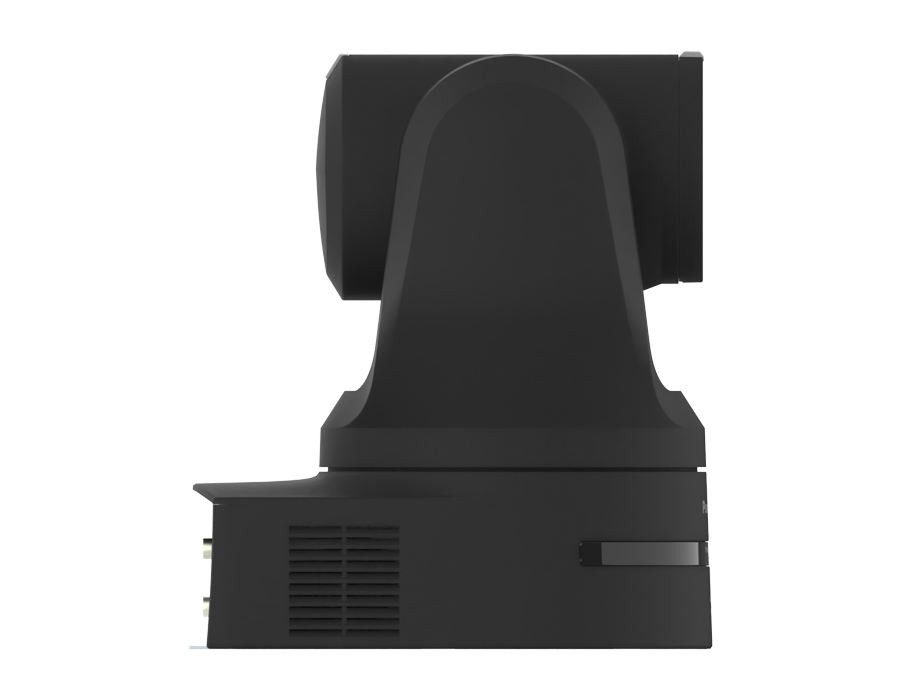

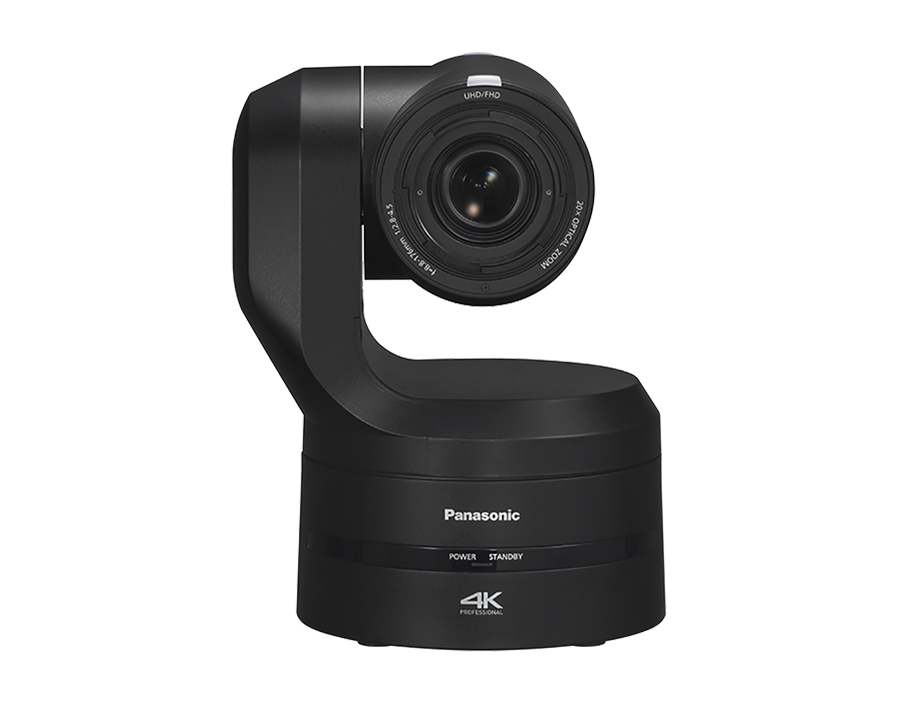

PTZ Camera Systems 4K Integrated Camera AW-UE160W/K
| Output Format (UHD/FHD SDI) | 4K2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) *2160/60p will be supported in version upgrade. HD1080/119.88p*, 1080/100p*, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p*1080/119.88p and 1080/100p use two 3G/SDI OUTPUT1/2 channels.*No output from 12G/SDI. |
| Output Format (HDMI) | 4K 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) *2160/60p will be supported in version upgrade. HD 1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p |
| Output Format (Fiber(Only Video)) | 4K 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) *2160/60p will be supported in version upgrade. HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Supported Protocol | ・Network Protocol: ICMP, ARP, GARP, MLD ・Transmission Protocol: TCP/IP, UDP/IP ・Application Protocol: IPv4 : HTTP, HTTPS, DNS, NTP, DHCPv6,MDNS, SNMP, 802.1X IPv6 : HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X ・Video Streaming Protocol: RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI®*1 HX version 2, NDI®*1 High Bandwidth ・External Device Cooperation Protocol: FreeD, TSL5.0, SNMP |
| Current Consumption | 5.0 A (XLR IN connector), 1.5A (PoE++ power supply) |
| Power Requirements | 12VDC±10%(10.8V to 13.2V) |
| Ambient Operating Temperature | 0 °C to +40 °C (32 °F to +104 °F) |
| PoE++ | IEEE802.3bt standard :DC 42 V to 57V (Camera Input)*Limited in function when PoE used.(Software authentication (LLDP) is supported)) |
| Storage Temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Mass | Approx. 4.6kg (10.14lbs) (excluding mount bracket) |

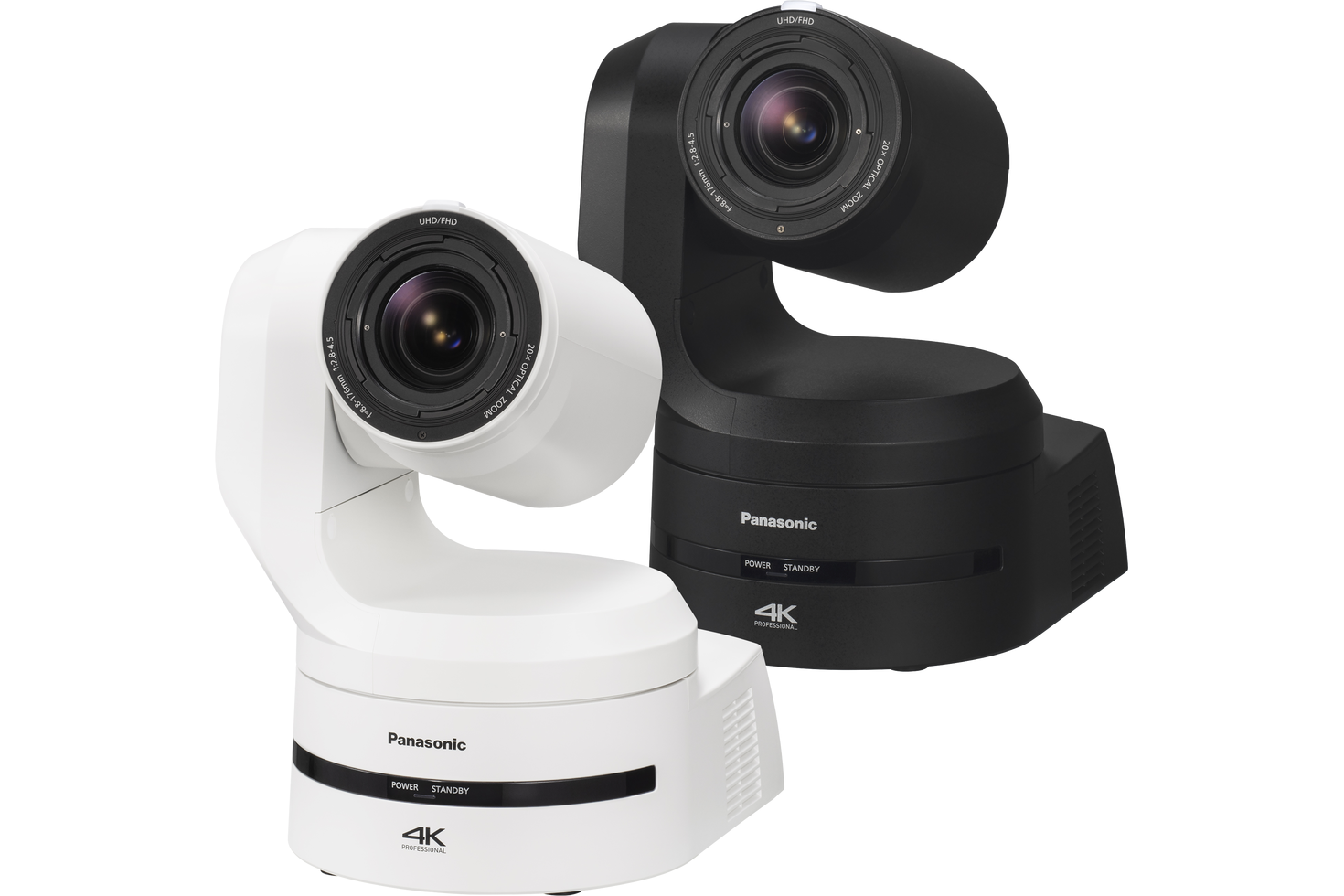

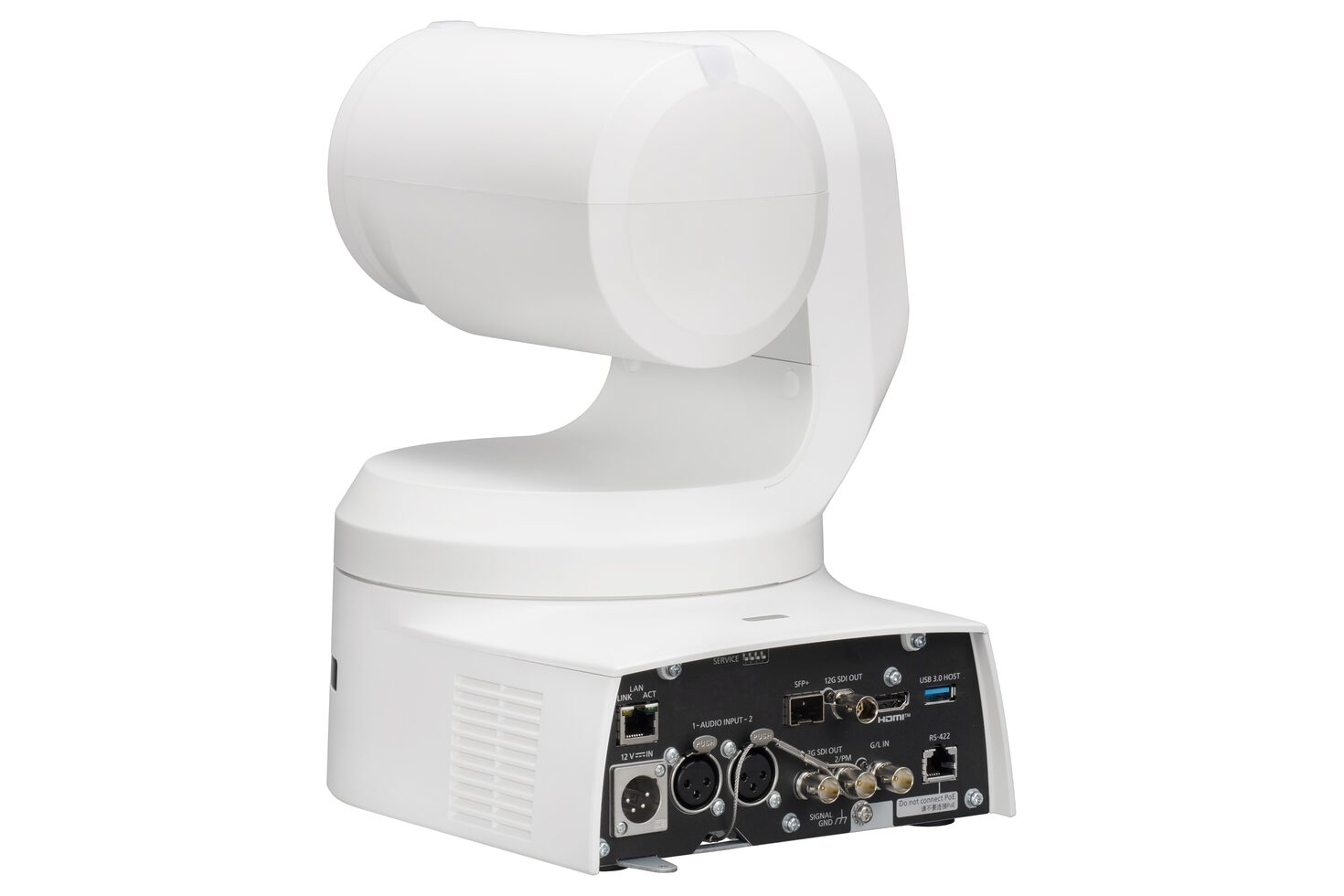

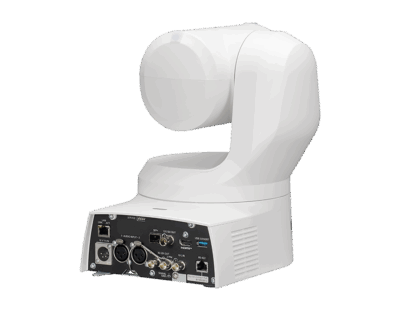

| Finish | AW-UE160W : Pearl White AW-UE160K : Black |
| Controller Supported | AW-RP150，AW-RP60，AK-HRP1010，AK-HRP1015，AK-HRP250 *IP only. Other ROP will be compatible in the future. **Digext Certification operation of AW-RP150 and AW-RP60 are not guaranteed. |
| Lens | Motorized Optical 20x Zoom F2.8 to F4.5(f=8.8 mm to 176.0 mm, 35mm equivalent:24.5 mm to 490.0 mm) |
| Imaging Sensors | 1-type (1″)* 4K MOSx1 *Effective size Effective Pixels: Approx. 9,620,000 pixels |
| Camera Unit | – |
| Optical Filter | Through、1/4, 1/16, 1/64 *equipped with Low pass filter(Through is used as “night mode”) |
| Focus | Switching between auto and manual |
| Conversion Lens | Not Supported |
| Angle of View Range | Horizontal: 75.1°(wide) to 4.0°(tele) Vertical: 46.7°(wide) to 2.3°(tele) Diagonal: 82.8°(wide) to 4.6°(tele) |
| Focus Distance | Entire zooming range: 1000 mm, Wide end: 100 mm |
| Standard Sensitivity | F11/2,000lux (Normal), F14/2,000lux (Low Light) |
| Color Separation Optical Systems | 1MOS |
| Horizontal Resolution | 1,600 TV Typ (center area, UHD Mode, Wide) |
| Gain Selection | Auto, -6dB to 12dB *1 dB step increments can be set. |
| Frame Mix | Auto, 0dB, 6dB, 12dB, 18dB, 24dB*If format is set in 1080/119.88p, 1080/100p, 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/25p, it cannot be set. |
| Electronic Shutter Speed | 60p: 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 59.94p/59.94i: 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 50p/50i: 1/60, 1/100, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 29.97p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1, 500, 1/2,000 25p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1,500, 1/2,00 23.98p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 24p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 59.94p･120fps: 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 50p･100fps: 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 |
| Synchro Scan | 60p: 60.00Hz to 7,200Hz 59.94p/59.94i: 60.00Hz to 7,200Hz 50p/50i: 50.00Hz to 7,200Hz 29.97p: 30.00Hz to 7,200Hz 25p: 25.00Hz to 7,200Hz 23.98p: 24.00Hz to 7,200Hz 59.94p･120fps: 120Hz to 7,200Hz 50p･100fps: 100Hz to 7,200Hz |
| White Balance | ATW､3200K, 5600K AWB-A､AWB-B VAR (selectable between 2000 K and 15000 K by designating a value) *ATW Speed 3-stage variables. |
| Gamma | HD / NORMAL / CINEMA1 / CINEMA2 *HLG is set in other menuMASTER GAMMA (0.15~0.75)R GAMMA (-75~+75)B GAMMA (-75~+75) R BLACK GAMMA (-20~+20)B BLACK GAMMA (-20~+20) |
| Scene File | Scene 1 to 8 |
| Chroma Amount Variability | OFF, -100% to 40% |
| HDMI | HDMI 2.0 connector 4:2:2/10bit *HDCP is not supported. *Viera Link is not supported. |
| Synchronization System | Internal/External synchronization (BBS/Tri-level sync) |

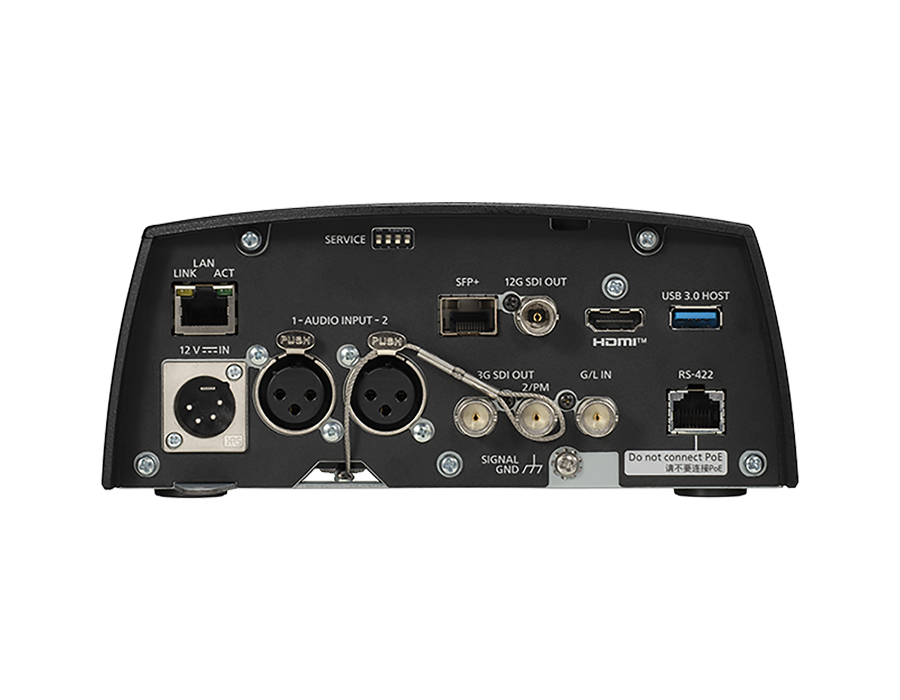

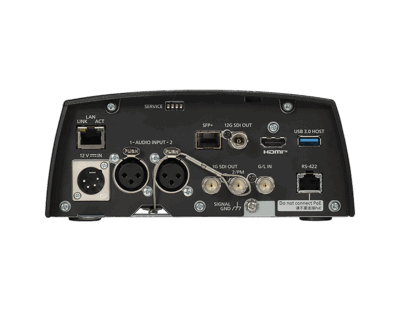

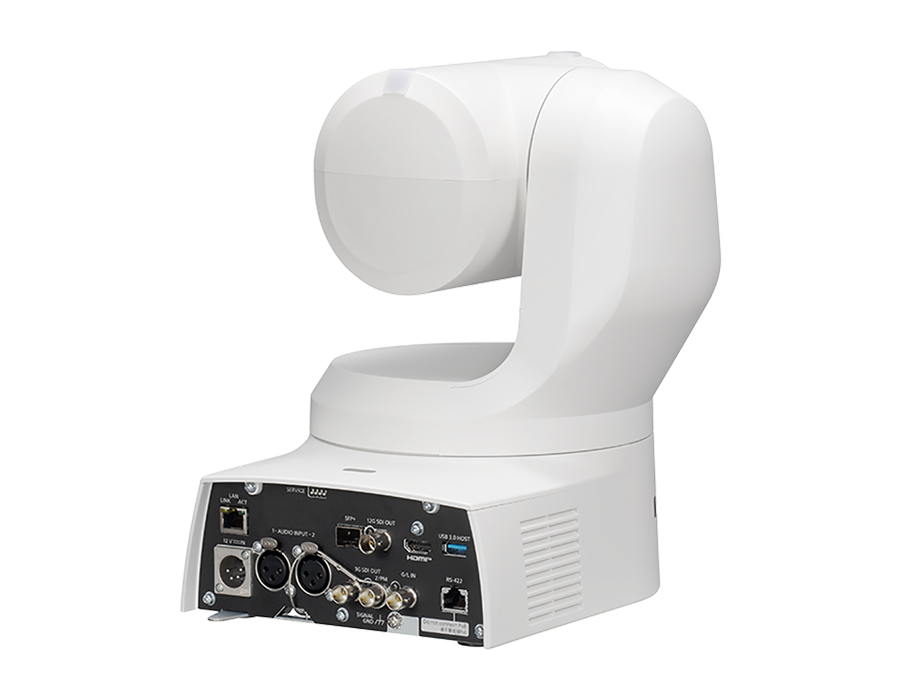

| Input | DC 12 V IN, G/L IN(BNC) |
| G/L In | BBS (Black Burst Sync), tri-level sync supported) |
| Output | – |
| AUDIO INPUT 1/2 | XLR(2ch) or MIC/LINE Input compatibles /HDMI /IP)AAC compatibility (compatible with IP only)3-pin XLR female connectors, 2ch, balanced input・During MIC input Input level: -50dBu or -60dBu/-40dBu(0 dB=1 V/Pa, 1 kHz) Phantom power compatible, Supply voltage:47 V±2 V Input impedance: Approx. 10kΩ・During LINE input Input level : 0 dBu ( or +4dBu/-20dBu) Input impedance: Approx. 10kΩ・Input volume variable range: -40 dB ~ 0dB ~ +20 dB (1dBstep)・Embedded audio output level: -12dBFS/-18dBFS/-20dBFS ・Sampling frequency: 48 kHz ・Quantization bit rate : 24 bit(SDI, HDMI), 16bit(IP) |
| 12G SDI OUT | SMPTE2082-1, SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported |
| 3G SDI OUT1 | SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported |
| 3G SDI OUT2/PM | SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported |
| SFP+ | SFP+ standard (Single Fiber) *This unit does not support input by optical signals MSA standard compliant product |
| Сеть | LAN connector for IP control (RJ-45) |
| USB | USB3.0 HOST(5G mobile router with USB tethering support) *Limited power supply to USB Wifi dongle. |
| RS-422 | CONTROL IN RS422A (RJ-45) |
| Input/Output | – |
| IP Connecting Cable | ・If you have PoE++ ethernet hub LAN cable *1( category 5e or above､straight cable) max. 100 m (328 ft) ・If you don’t have PoE++ ethernet hub LAN cable *1( category 5e or above､straight cable) max. 100 m (328 ft) *1 STP(Shielded Twisted Pair) is recommended *2 Category 6 or above is used for 4K video transmission. |
| Pan-tilt Head Control | – |
| AW Protocol Connecting Cable | LAN cable* (category 5e or above, straight cable) max. 1000 m (3280 ft) *STP (Shielded Twisted Pair) is recommended |
| Pan/Tilt Operation Speed | Speed range: 0.08 °/s ~180°/s( Normal mode) 3 speed modes installed: Normal: ~60°/s, Fast1: ~90°/s, Fast2: ~180°/s |
| Quietness | NC35 or less *When standing still, NC25 or less |
| Tilting Range | -30°~ 210° *Depending on the pan or tilt position, the camera may be reflected in the image. |
| Panning Range | ±175° |
| Pan-Tilt Head Unit | – |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging) *To ensure safety, the unit must be secured using the mount bracket supplied. |
| Windows | Windows®10 Microsoft Edge Google Chrome |
| Supported operating systems and web browsers | – |
| Image Resolution | 3840×2160, 1920×1080, 1280×720, 640×360 |
| Mac | macOS 10.13 / Safari 13 macOS 10.14 / Safari 13 macOS 10.15 / Safari 13 macOS 10.15 / Google Chrome |
| Android | Android OS Google Chrome |
| IP Streaming | – |
| Image Streaming Mode | JPEG(MJPEG), H.264, H.265, NDI®*1 HX Ver2, NDI®*1 High Bandwidth |
| Image Transmission setting (JPEG) | ・Frame rate : Max. 30fps *No bit rate specified *JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate ・Image quality: Fine/Normal |
| Image Transmission Setting (H.264) | ・Transmission Type : Unicast port (AUTO), Unicast port (MANUAL), Multicast port ・Transmission mode :CBR, VBR ・Frame Rate [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps,60fps) [50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps,50fps) ・Max to Min Bit Rate: 2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps |
| iPhone / iPad / iPod touch | iOS, Safari, iPadOS |
| Image Transmission Setting (H.265) | ・Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port ・Transmission Mode: CBR,VBR Frame Rate [60Hz] 30fps / 60fps [50Hz] 25fps / 25fps ・Max to Min Bit Rate: 2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps |
| Audio Compression Type | AAC-LC, 48kHz/16bit/2ch |
| Output Format | ・Video Format (Full x1, MONI x1.Crop x1, all of these same format) 1080/60p, 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native), 25p(Native), 1080/24p, 1080/23.98p(Native), 720/59.94p, 50p・Audio Specification INPUT1/INPUT2 PCM/48khz/24bit/1ch x2 |
| Image Streaming Setting | ・NDI®*1 High Bandwidth Transmisiion Type: TCP /UDP, Unicast/Multicast Bit Rate: Max. 250Mbps ・NDI®*1 HX version.2: Transmission Type: TCP/UDP, Unicast/Multicast Frame Rate: [60Hz] 5fps/15fps/30fps/60fps [50Hz] 5fps/12.5fps/25fps/50fps Max Bit Rate: 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps /6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps |
| Audio Compression Type 2 | NDI®*1 High Bandwidth: AAC, 48kHz, 2ch NDI®*1 HX Ver.2: AAC-LC, 48kHz/16bit/2ch |
| Number of Output (TX) | Video: 3 line (Full x1, MONI x1.Crop x1) Audio: 2 line Auxiliary data: No output |
| Number of Input (RX) | Video: 1 line(RETURN) *Out from 3G SDI OUT2(Video is changed in the OSD menu) Audio: No input Auxiliary data: No input |
| Optional Accessories | – |
| Cropping | Select from 3 types of images from 3G/SDI OUTPUT2, Crop Zoom available |
| Image Stabilization | Hybrid method of OIS 2-axis + Roll direction correction MENU switching: select between OFF / O.I.S.(STABLE) / O.I.S.(PAN/TILT) / HYBRID(STABLE) / HYBRID(PAN/TILT) |
| Power LED | ON/OFF control |
| Tripod Screw Penetration Measures | Possible |
| Privacy Mode | The lens surface faces downward when standing by (ON/OFF) |
| Input Format | Video Format (Full x1, MONI x1.Crop x1, all of these same format)1080/60p, 1080/59.94i, 50i, 1080/29.97p(Native), 25p(Native) 1080/24p, 1080/23.98p(Native), 720/59.94p, 50p |
| New Feature | – |
| HDR/SDR | HLG/BT.2020 compatible, SDR/BT.709 compatible |
| F Number Display | Displayed on the AW-RP150 and AW-RP60 sides |
| NDI | NDI®*1 High Bandwidth, NDI®*1 HX Ver.2 included as standard |
| IP menu display | supported *Non-synchronous with SDI-OUT |
| VR (FreeD) (IP/RS422) | supported |
| Yellow Tally | supported |
| PTP | supported |
| 5G/WiFi 6 | Compatible with recommended products only |
| WFM display | Output with video superimposed from 3G/SDI OUTPUT2 |
| Return Video Output | Output return video input from ST 2110 via SDI_OUT2 |
| Horizontal Level Gauge | ON/OFF control in OSD MENU or Web GUI |
| Wireless Remote Controller | AW-RM50AG（Size “AA” dry battery x 2, obtained separately） |
| Dimensions (W x H x D) | 213.0 mm x 277.0 mm x 240.0 mm (8.39inches x 10.91inches x 9.45inches) [excluding protrusions, cable cover, ceiling mount bracket] |
| Supported Format | ST 2110: 10/20/21/30 PTP: ST 2059-2 NMOS: IS-04/IS-05 |
| Output Format (ST 2110) | HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p |
| SFP+(ST 2110) | Compatible protocol: -ST 2110-10/-20/-21/-30 -PTP ST 2059-2 -NMOS IS-04/IS-05 Output number: Video x3 (Full, Crop, Monitor), Audio x2 Input number: Video x1 (RETURN) Video format: FHD *Same as system format |
| ST 2110 | |
| Zoom | • Optical Zoom: 20x• i.Zoom: UHD 24x, FHD 32x• Digital Extender Zoom: 1.4x, x |
| 4K 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p､720/59.94p, 720/50p | |
| 3840×2160, 1920×1080, 1280×720 | |
| Note | *1:NDI® is a registered trademark of Vizrt NDI AB in the United States and other countries. |
- Uncompromising shooting performance and operability.
– High sensitivity of F14/2000 lx, equivalent to a studio camera
– New generation engine that maximizes image sensor performance and improves image quality and AF performance
– Equipped with newly developed PDAF (Phase Detection Autofocus)
– Focus guide (for manual operation)
– Auto Iris Window
– Equipped with newly developed PTZ mechanism
– Equipped with moiré reduction function by optical low-pass filter
– Compatible with V-Log
– Compatible with HDR (HLG)
– Equipped with Optical Image Stabilization (OIS) and Electronic Image Stabilization (EIS)
– Improvement of synchronized pan, tilt, and zoom during preset movement - Realize next-generation video production with various shooting methods and functions.
– Industry’s first SMPTE ST 2110 standard compatibility
– Industry’s first return input function
– Supports 2x high-speed output
– Equipped with 2 XLR channels for audio input to enable high-quality recording
– Industry’s first 5G mobile router (USB tethering support) for high-speed, high-capacity videotransmission
– Equipped with a rear tally lamp
– FreeD support for construction of AR/VR systems
– Cropping function
– Flexibility to freely set positions and angles - Ease of use and versatility reduces stress of shooting on-site.
– Various I/Fs and supported protocols
– Smooth image and color matching
– Waveform display function
– Horizontal level gauge display function
– Compatible with free Panasonic software
– Compatible with Panasonic Remote Operation Panel (ROP)
– Compatible with IT/IP platform “KAIROS”
