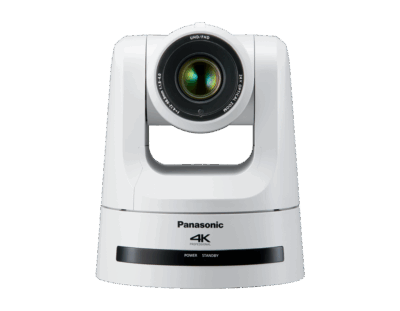

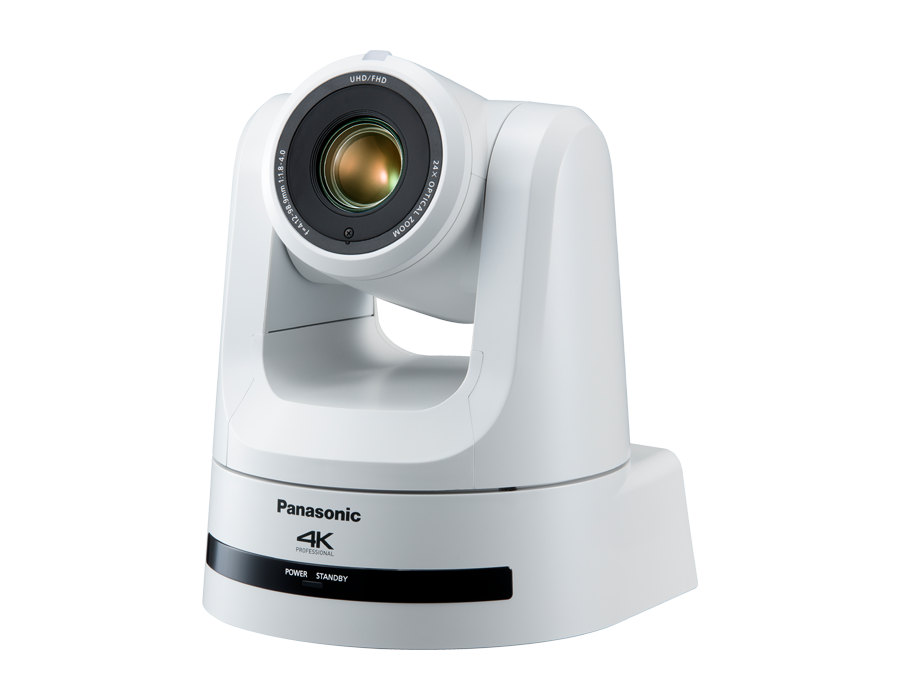

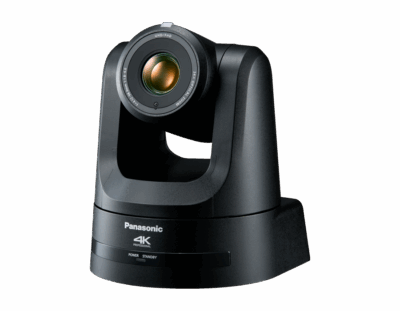

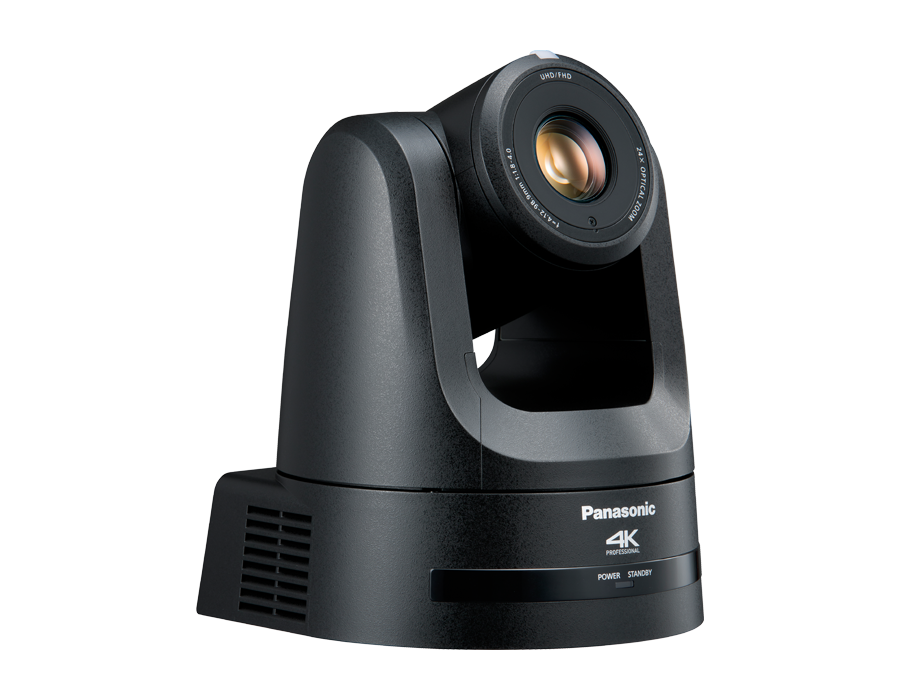

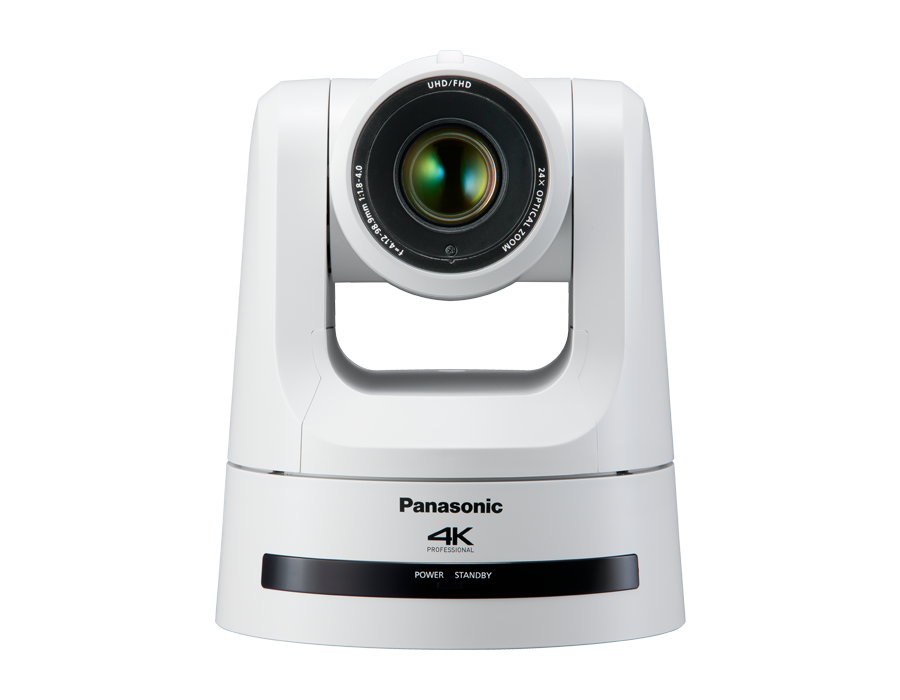

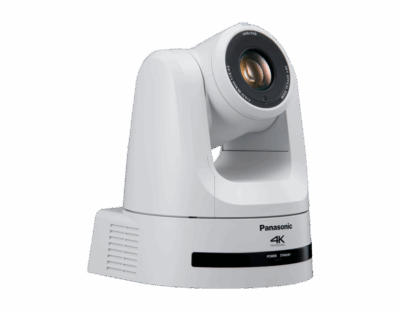

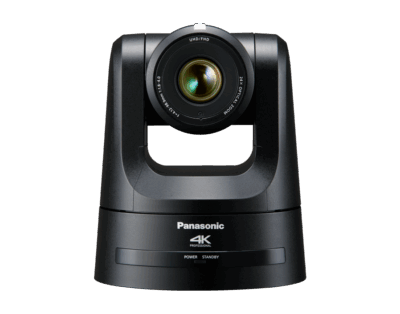

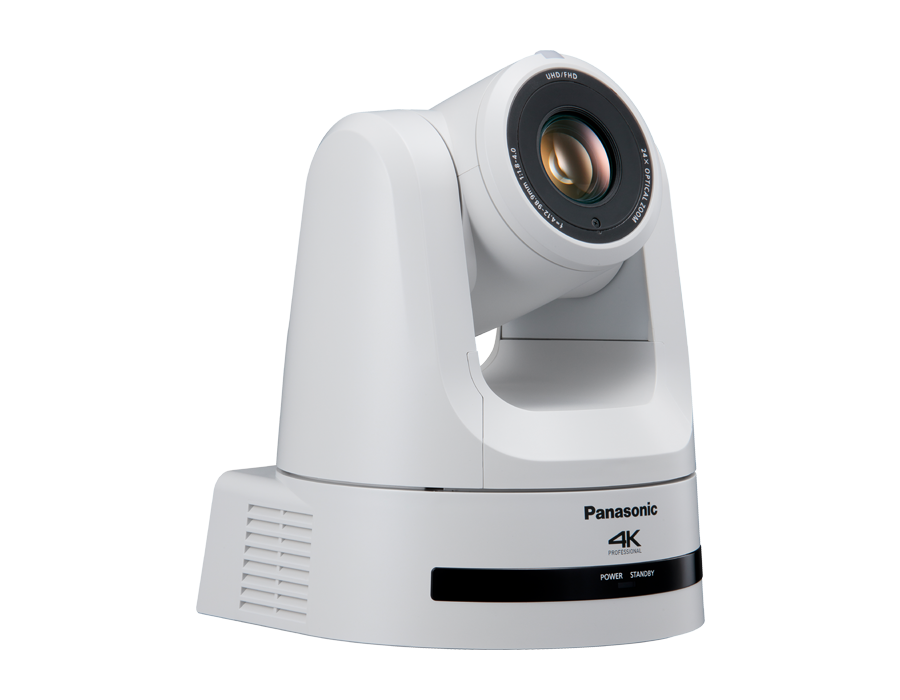

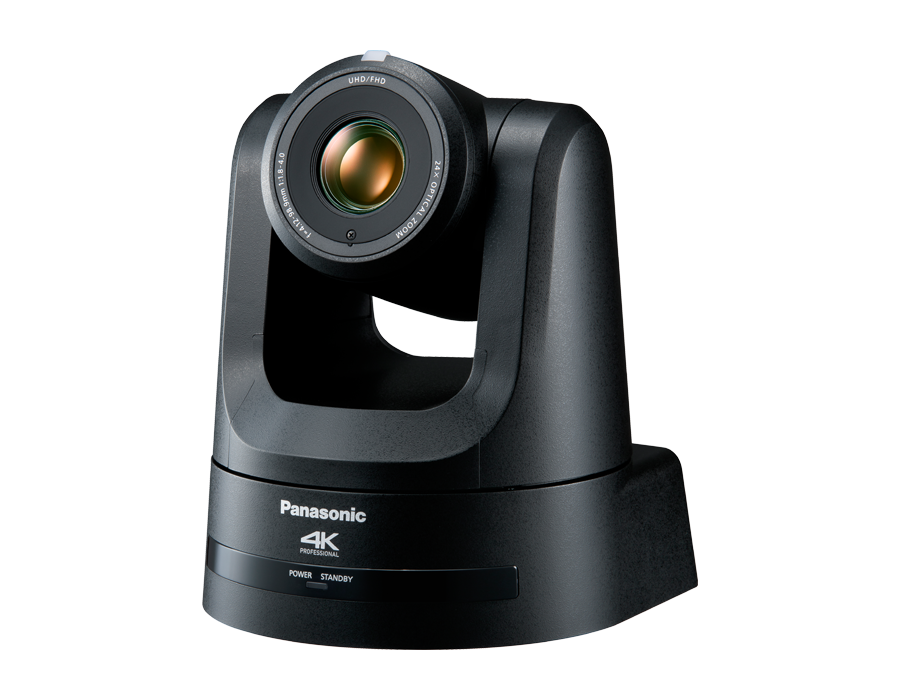

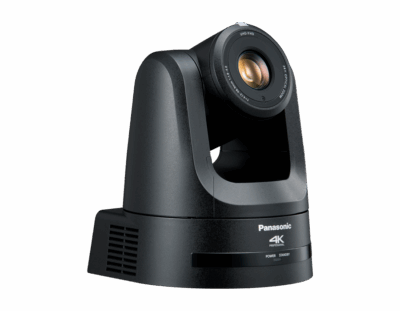

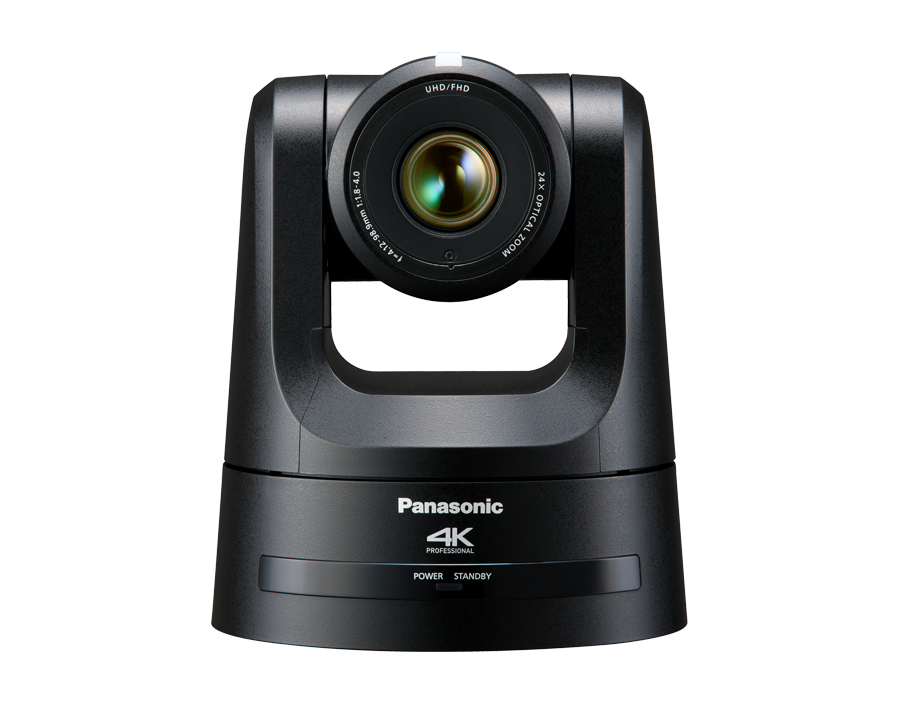

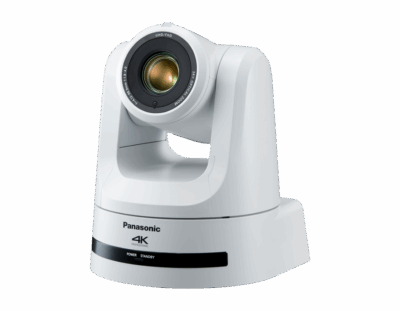

PTZ Camera Systems 4K Integrated Camera AW-UE100W/K
Power Requirements Main unit: DC 12 V±10% (10.8 V to 13.2 V), AC adaptor: AC 100 V to 240 V
PoE++ Complies with IEEE802.3bt: DC 42 V to 57 V (camera end) (supports software authentication (LLDP communication))
Current Consumption Main unit: 3.0 A (DC jack input), 1.2 A (PoE++ power supply), AC adaptor (included): 3.0 A
Bec Approx. 2.2 kg (4.85lbs) (excluding cable cover, direct ceiling mount bracket) Approx. 2.3 kg (5.07lbs) (excluding direct ceiling mount bracket)
Dimensions 169.2 mm x 170.6 mm x 204.6 mm (6.66 inches x 6.72 inches x 8.06 inches) (excluding protrusions, cable cover, and direct ceiling mount bracket)
Camera Unit
Image Sensor 1/2.5-type 4K MOS x 1
Lens Electric powered 24x optical zoom F1.8 to F4.0 (f = 4.12 mm to 98.9 mm, converted to 35 mm: 25.0 mm to 600.0 mm) i.Zoom (UHD: 28x, FHD: 36x) (*switches from optical 24x i.Zoom digital zoom)
Field of View Range Horizontal field of view: 74.1° (wide) to 3.3° (tele) Vertical field of view: 46.0° (wide) to 1.9° (tele) Diagonal field of view: 81.8° (wide) to 3.8° (tele)
Horizontal Resolution 1,500 TV lines Typ (center area)
Output Formats [4K formats] 2160/59.94p, 2160/50p, 2160/29.97p (native), 2160/25p (native), 2160/24p (native), 2160/23.98p (native) [HD formats] 1080/59.94p, 1080/50p, 1080/29.97p (native), 1080/29.97PsF, 1080/25p (native), 1080/25PsF, 1080/23.98p over 59.94i, 1080/24p (native), 1080/23.98p (native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Output
HDMI HDMI 2.0 connector 4:2:2/10 bit*3*4
12G-SDI OUT SMPTE2082-1, SMPTE292 compliant/75 Ω (BNC x 1)*5
3G-SDI OUT SMPTE292/75 Ω (BNC x 1)*5

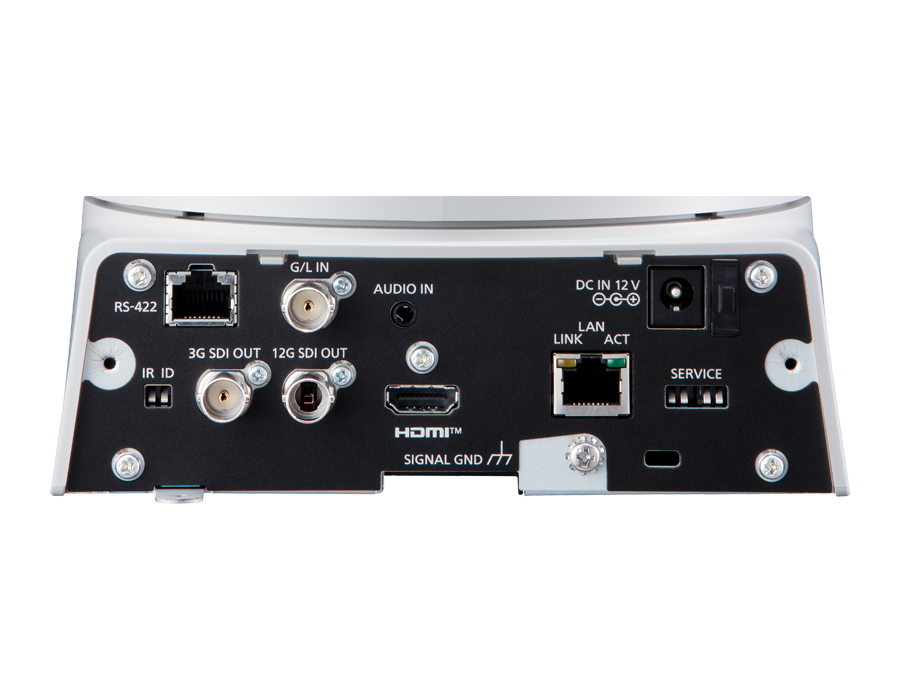

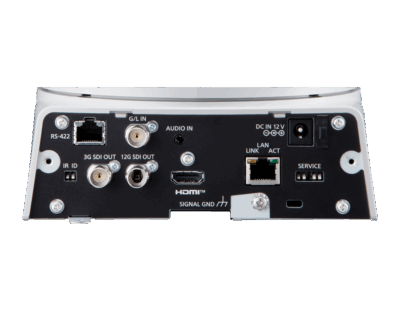

Input/Output
Сеть LAN for IP control and video transmission/PoE++ terminal (RJ-45)
RS-422 CONTROL IN RS422A (RJ-45)
MIC/Line Input Supported (SDI/HDMI/IP), AAC compatible (IP only) O3.5 mm stereo mini jack For mic input, input level: -40 dBV (0 dB = 1 V/Pa, 1 kHz) plug-in power compatible, supply voltage: 2.5 V ±0.5 V For line input, input level: -10 dBV Input volume variable range: -36 dB to 12 dB (3 dB step) embedded audio output level: -12 dBFS Sampling frequency: 48 kHz Quantified bit count: 24bit (SDI, HDMI), 16bit (IP)
Pan Tilt Head Unit
Panning Range ±175°
Tilting Range -30° to 210°*6
IP Streaming
Video Compression Format JPEG (MJPEG), H.264, H.265, NDI®|HX, High bandwidth NDI®
Resolution 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180
New Functions
NDI Support NDI®, NDI®|HX: Included as standard*7*8
Mechanical Pan/Tilt Direct Drive system
- High-quality 4K Image
– High-Quality 4K 60p/50p Shooting
1/2.5-type MOS sensor
– Shooting with 24x optical zoom and a 74.1° horizontal angle of view
– Newly-developed high-precision Direct Drive motor
– Electronic Image Stabilization (EIS) for roll direction - Various Functions
– FreeD Support for Construction of AR/VR Systems
– Compatible with free Panasonic software
– Compatible with IT/IP platform “KAIROS”
– Cropping (+ Zoom) function
– Tally LED Limit - Wide Expandability
– High image quality and low latency with high bandwidth NDI support
– SRT support for stable video transmission over public lines
– Direct Broadcast via RTMP/RTMPS
