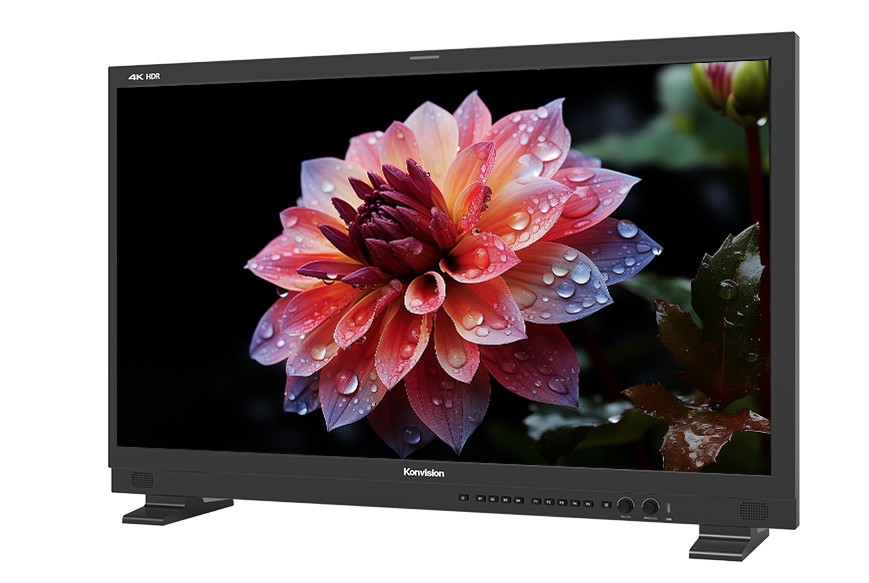

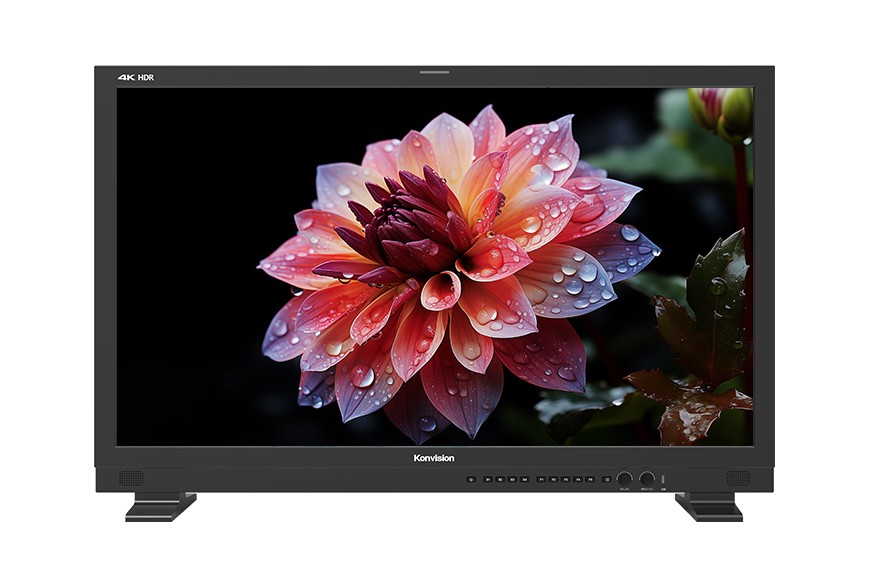

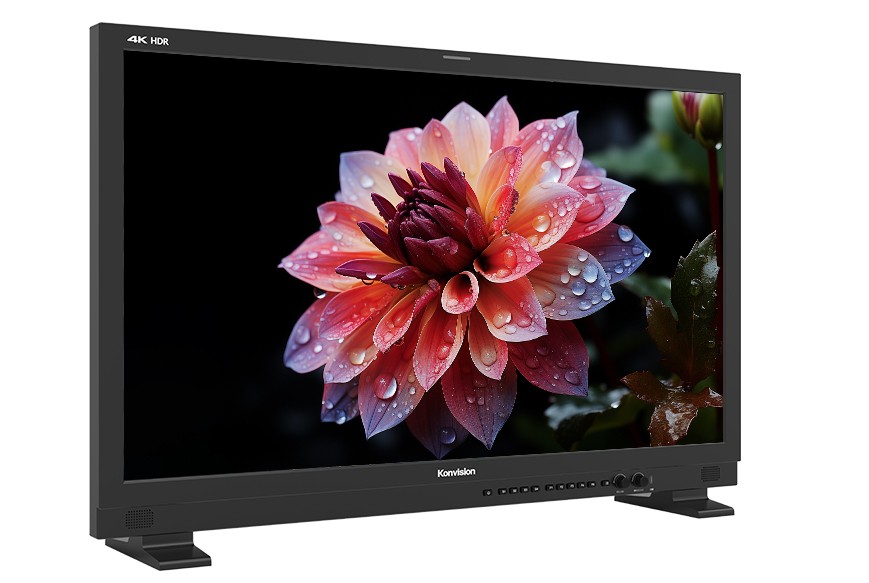

KXM-3210M 31.5”4K HDR Mini-LED Monitor
15836620,80 ₸
Screen Mini-LED
Display Size 31.5″
Resolution 3840×2160
Aspect Ratio 16:9
Viewing Angle 178°(H) / 178°(V)
Color Depth 1.07B
Brightness 1500cd/m² (Peak brightness)
Contrast Ratio 1,000,000:1
2× BNC 12G-SDI 3/4signal inputs(Auto-detected and compatiable to 6G/3G/HD/SD-SDI)
2× BNC 3G-SDI 1/2 signal inputs(3G/HD/SD-SDI auto detected）
1 x SDI SFP+ SDI SFP+ input cage
1 × HDMI 2.0(optional)
HDMI 2.0 Signal input
2× BNC 12G-SDI 3/4signal outputs(Auto-detected and compatiable to 6G/3G/HD/SD-SDI)
2× BNC 3G-SDI 1/2 signal outputs(3G/HD/SD-SDI auto detected）
1 × HDMI 2.0(optional) HDMI 2.0 Signal output
SMPTE ST 2081 2160p(60/59.94/50)
SMPTE ST 2082 2160p(30/29.97/25/24/23.98)
SMPTE-425M-A/B 4:2:2 YCbCr 10-bit 1080P(60/59.94/50)
4:4:4 YCbCr/RGB 10-bit 1080i(60/59.94/50)
4:4:4 YCbCr/RGB 12-bit
1080p(30/29.97/25/24/23.98/
30sF/29.97sF/25sF/24sF/23.98sF)
4:2:2 YCbCr 12-bit
1080i(60/59.94/50)
1080p(30/29.97/25/24/23.98/
30sF/29.97sF/25sF/24sF/23.98sF)
4:4:4 YCbCr/RGB 10-bit 720P(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-274M 1080i(60/59.94/50)
SMPTE-296M 720P(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-260M 1035i(60/59.94)
SMPTE-125M 480i(59.94)
ITU-R BT.656 576i(50)
SDI Audio In 16 Channels SDI/2 Channels embedded audio
Audio Meter Display Vertical/Horizontal Audio Level Meter Display
Audio Headset Output 3.5mm Headset Jack
Built-in Speaker 2.5W×2
Operating Temperature -10°~ 50°
Input Voltage AC 100-240V 50/60Hz
Power Consumption 200W
Power-Saving Mode Turn off unimportant key Automatically if no signal input
VESA Installation VESA MIS-D(200X200mm)
Accessory Power Cord /Desktop stand.
Available on backorder
- 3840×2160 4K/UHD resolution, 10BIT Mini-LED panel
- 1500nits brightness(Peak brightness)and 1,000,000:1 contrast ratio
- 12 Bit Video Processing, image no delay
- 2 x 12G-SDI inputs and outputs (6G/3G/HD/SD-SDI auto detect)
- 2 x 3G/HD/SD-SDI inputs and outputs
- 4K 12G-SDI single link signal, up to 4096 x 2160 60p
- 4K signal: 2 Sample Interleave (2SI), Square Division (SQD)
- 11 x SDI SFP+ module optical input cage
- 4K Mode, Quad-Split Mode, FHD single picture mode
- 4 x SDI Quad-View: mixed inputs & frequency rates
- Free Quad-View (boarder control/window adjustment)
- Payload ID display
- Color Space & EOTF Curves Auto Setting, matching(Rec.709/Rec.2020)
- Color Space (Rec.709/EBU/DCI-P3 D65/DCI-P3/Rec.2020/Bypass)
- HDR: PQ (ST2084), HLG (1.03/1.11/1.16/1.20/1.27/1.33)
- Sony Camera Log Curves: Slog, Slog2, Slog3
- Canon Camera Log Curves: Clog, Clog2, Clog3
- ARRI Camera Log Curves: LogC
- Panasonic Camera Log Curves: Vlog, Vlog (softroll)
- Gamma (2.0, 2.2, 2.4, 2.6)，HDR Area Display
- 4K HDR Waveform, Vector Scope, Marker/Box Control Function
- 3D LUT Color calibration with ColourSpace & CalMAN
- 3rd-party 3D LUT files import(USER1/USER2)
- S1-S8 Eight Selectable Scene Settings
- Picture Flip, Focus Assist, False Color, Zebra
- SDR and HDR comparison, Darkness Check
- Full Scan, Over Scan, Blue/Mono Only
- 16ch Embedded Audio Level Meters
- Dynamic and Static UMD Display (TSL3.1/4.0/5.0)
- 608/708 CC Closed Caption- Key Lock, Video Freeze
- Firmware upgrade/LUT file import via USB/Ethernet
- GPI (selectable/markable windows)
- Aluminum Alloy Casing, Built-in Speaker.
https://www.konvision.com/32kxm-3210m/KXM-3210M.html
If you are interested in our products or need detailed advice, please contact us at the contacts below.
Sales Department
Mob.: +7 747 47 00 950
Email: sales@mediashop.kz
Technical Support and Consultation Department
Mob.: +7 747 47 00 940
Email: Support@mediashop.kz
Or fill in the feedback form and we will contact you in a short time.
