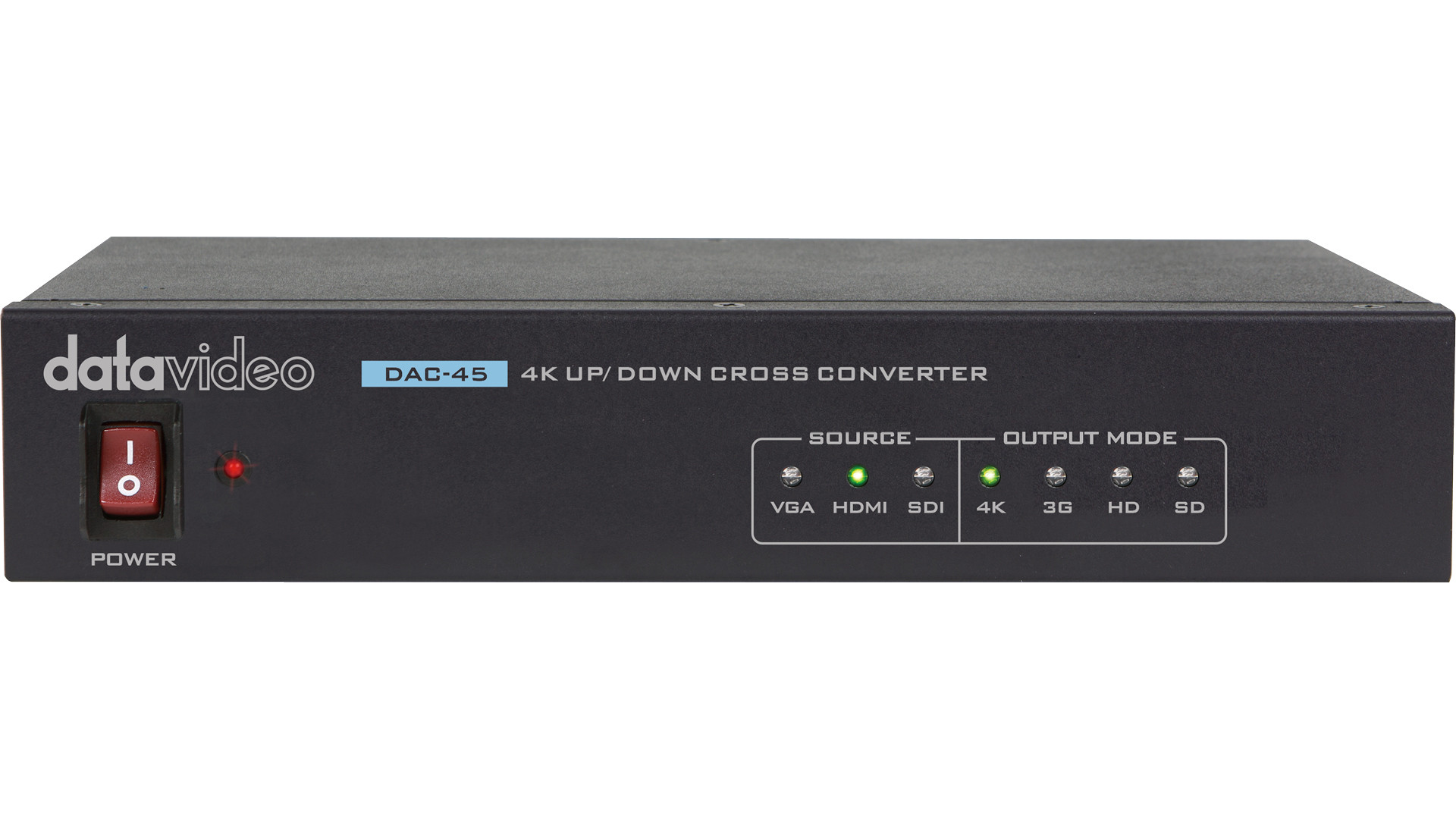

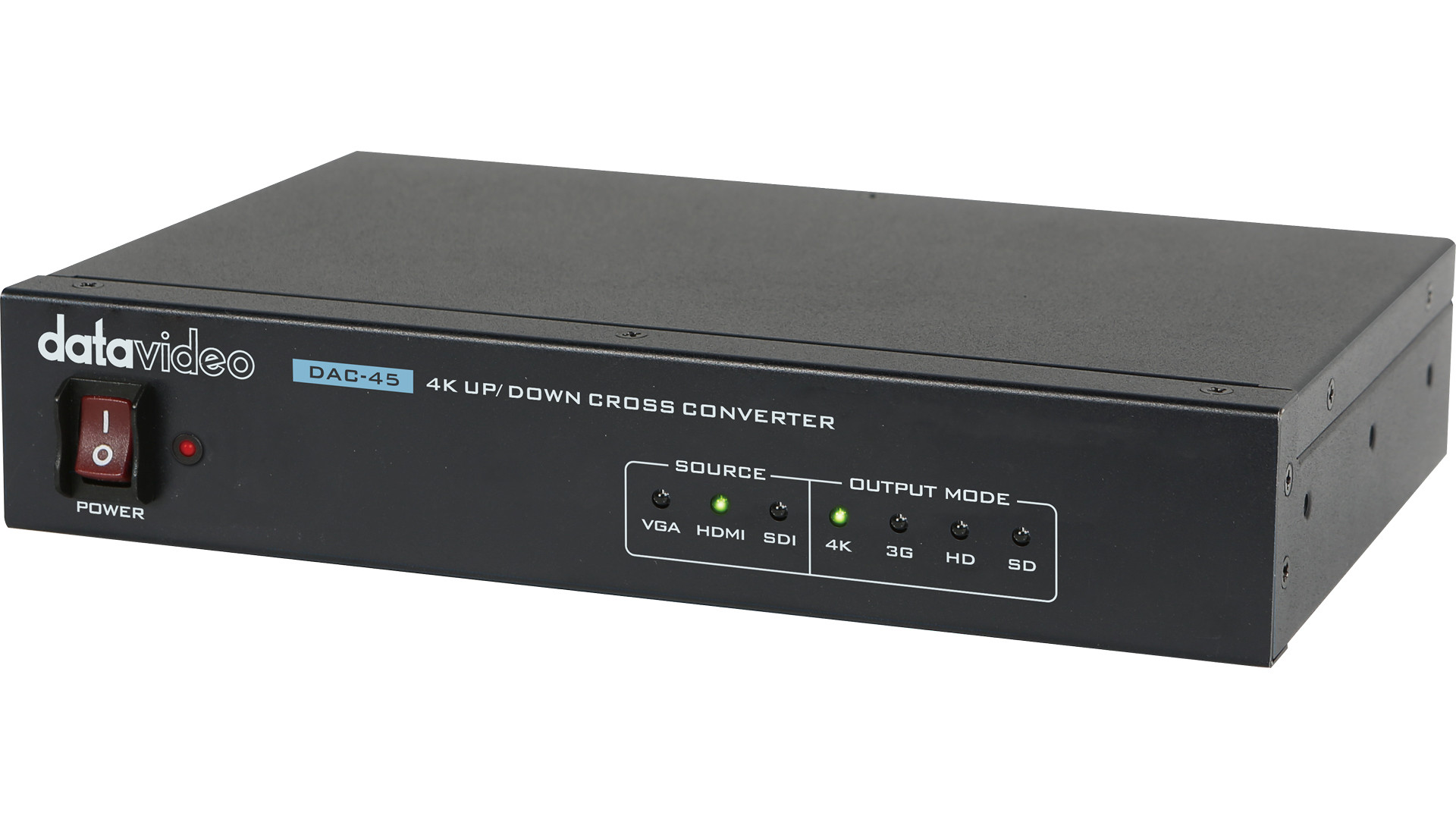

4K Up/Down Cross Converter DAC-45
Conversion VGA/HDMI/SDI to 4K HDMI/3G-SDI, Multi-format Up/Down/Cross

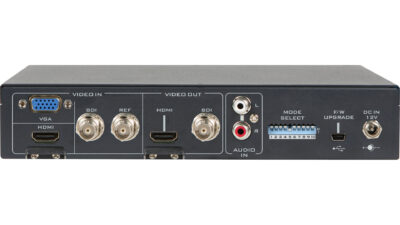

Video Inputs 1x VGA, 1x HDMI, 1x HD/SD-SDI, 1x Reference Input
Loop Through —-
Video Outputs 1x SDI, 1x HDMI
Audio Inputs 2xRCA(Unbalanced Audio L/R), 2x SDI/HDMI Audio embedded
Audio Outputs SDI embedded audio up to 8CH, 48KHz, PCM audio, HDMI embedded audio up to 8CH, 48KHz, PCM audio
Audio Format Selection —-
Audio Gain —-
Supported Video Input Formats 2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 576p, 576i, 525i, 480p, 480i, 1920×1080(60Hz), 1280×720(60Hz), 1600×1200(60Hz), 1400×1050(60Hz), 1366×768(60Hz), 1280×1024(60Hz), 1024×768(60Hz), 800×600 (60Hz)
Output Resolutions 2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 576p, 576i, 525i, 480p, 480i
Equalizer Yes
Reclock Yes
SDI Cable Drive Yes
Updates and Configuration Mini USB x 1
Dimension (LxWxH) 220 x 143 x 42 mm
Weight 1 kg
Operating Temp. Range 0~40 °C
Power DC 12V, 9.4W
What’s in the Box 1 x DAC-45, 1 x AD Switch DC 12V.
- 4K Up Conversion.
- With built-in super resolution engine, users can now up-convert from SD 480 resolution all the way to 4K resolution with excellent image quality and sharpness.
- External audio embedding.
- RCA inputs allow audio to be embedded to the output of the video signal.
- Supports 3G-SDI Level A/B.
- With the 3G-SDI system, it supports both 3G-SDI Level A/B input.
- Wide range conversion for great compatibility.
- Supports VGA/HDMI/SDI to 4K HDMI/3G-SDI multi-format up/down/cross conversion.
- Built-in De-interlacer and Interlacer (I/P conversion).
- Supports I/P conversion to avoid the dense misaligned horizontal lines on the video.
- Reference input (Black Burst and Tri-Level Sync).
- Supports Black Burst and Tri-Level Sync for all inputs.
- Adjustment of HDMI color space.
- The DAC CENTER software allows adjustment of HDMI color space. Support of various resolutions and HDMI color space allow consumer laptops to be used in a professional workflow.
