Category: Remote Camera Controller
Showing all 4 results
-

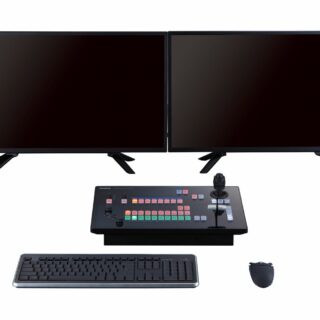

AV-HLC100 Live Streaming Production Center
Read morePower Supply DC 19 V (AC adaptor provided) Power Consumption 110 W Ambient Operating Temperature 0 °C to 40 °C (32°F to 104°F) Humidity 20 % to 80 % (no condensation) Mass Approx. 6.05 kg (13.34 lbs) Dimensions (W x H x D) 427 mm x 93 mm x 278 mm (16.8 inches x 3.67 inches x 10.96 inches) (excluding protrusions) Number of ME 1ME Number of switcher channel 10 ・ 8 External (selected from among 3G-SDI x 4, 3G-SDI x 3 + HDMI x 1, NDI®*2 sources x 8) ・ 2 Internal (CLIP x 1, STILL x 1) Number of Keyer 2 Keyer (PinP / Title) System Video Format 1080/59.94p*2 *3, 1080/59.94i, 1080/29.97PsF, 1080/23.98p, 1080/50p*2 *3, 1080/50i, 1080/25PsF 720/59.94p, 720/50p, 720/29.97p, 720/25p Video Input SDI x 4 or SDI x 3 + HDMI x 1*2 *4 Network Input Sources 8 ・ NDI®*1 input from Panasonic PTZ Camera that supports NDI®*1 HX and NDI®*1 compatible equipment ・ IP input from Skype TX compatible PC Audio Input 15 ・ 4-channel SDI/HDMI embedded audio x 4 ・ 4-channel NDI®*1 embedded audio x 8 ・ 6.35 mm balanced line x 2 ・ 3.5 mm diameter, stereo mini jack x 1 Video Output 4 ・ BNC x 1 3G-SDI (PGM)*1 ・ BNC x 1 3G-SDI (selectable from PGM / PVW / AUX)*1 ・ HDMI x 1 or Display Port (for GUI)*4 x 1 ・ Network output x 1 Network Video Output 1 selectable from MIX (PGM or PVW) / AUX ・ NDI®*1 output ・ RTMP format streaming output*6 Audio Output 6 ・ SDI embedded audio x 2 ・ 6.35 mm balanced line x 2 ・ 3.5 mm diameter, stereo mini jack x 1 ・ NDI®*1 embedded audio x 1 Effects and Transitions Wipe / Mix / Cut ・ Background Video ・ PinP ・ Title Audio Mixing ・ 4 ch. Master (Program) mix ・ 12 x faders: 1 for each of 8 external audio inputs, plus 1 x internal Clips player and 1 x Skype TX Talkback input; plus 1 x Master output and 1 x Headphones ・ Plus 1 x separate audio fader for video Streaming output ・ Seven-band equalizer and stereo compressor / limiter per input and output, with per-input audio delay control Video Clip Memory DDR x 1 ch*7 Still Store Memory DDR x 1 ch*7 Title Buffer 1 Title Buffer (displays 1 of 8 Buffer presets) Reference Input Internal only PTZ Camera Control (Via IP) Number of connected cameras: Up to 8 cameras Pan / Tilt / ZOOM / FOCUS control: 3 axis joystick (ZOOM / FOCUS is switched by pressing the upper button) ZOOM control: Independent rocker switch IRIS control: independent IRIS knob, pressed AUTO / manual switching FOCUS control: Independent FOCUS knob, pressed AUTO / manual switching Preset control: store / recall, up to 100 positions OSD menu control: OSD button*8 White balance control: GUI screen Camera menu or OSD screen (Auto / PST A / PST B / Execute)*8 CAM / BAR selection: GUI screen Camera menu or OSD screen*8 Tally Output DB-15 Tally port Network Connector RJ-45 x 2 1000BASE-T / 100BASE-TX / 10BASE-TX USB Host I/F USB3.0 x 4 Accessory AC adaptor, Power cable, keyboard, mouse Note * 1:NDI® is a registered trademark of Vizrt NDI AB in the United States and other countries. *2: 3G-SDI corresponds to Level-A only. *3: The 1080/59.94p and 1080/50p formats are not supported for HDMI input. *4: You cannot use the SDI input 1 and the HDMI connector at the same time. *5: HDMI and Display port can not be used simultaneously. *6: Only available when plug-in provided by NewTek is installed. *7: See “Supported Formats” on page 6 for details. *8: OSD function is available for Panasonic PTZ camera of SDI and HDMI output. It is not available for those of NDI® HX output. -

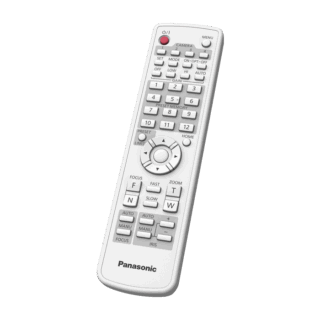

PTZ Camera Systems Infrared Wireless Remote Control AW-RM50AG
Read morePower Supply DC3V (size “AA” , “R6” or “LR6” dry battery x 2)*1 Operable Range Approx. 10 m (32.8 ft)*2 Battery Life Span Approx. 1.5 years*3 Dimensions (W x H x D) 53 mm x 27.3 mm x 200 mm (2-1/16 inches x 1-5/6 inches x 7-7/8 inches) Weight Approx. 92 g (0.20 lbs.)*4 Power Supply DC3V (size “AA” , “R6” or “LR6” dry battery x 2)*1 Operable Range Approx. 10 m (32.8 ft)*2 -

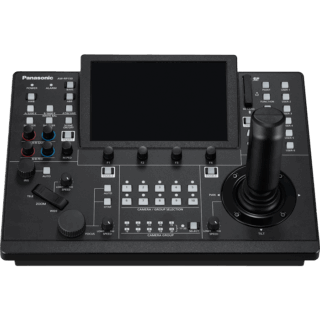

PTZ Camera Systems Remote Camera Controller AW-RP150GJ
Read moreGeneral Power Requirements 12 V DC (10.8 V to 13.2 V) PoE+ IEEE802.3at standard: DC 42 V to 57 V (Camera Input) Current Consumption 1.0 A (Connector Input) 0.6 A (PoE+ power supply) Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Ambient Operating Humidity 20% to 90% (no condensation) Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F) Weight Approx. 3.2 kg (7.05 lb) Dimensions (W x H x D) (mm) 342 mm x 178 mm x 245 mm(excluding protrusions) Dimensions (W x H x D) (inch) 13-15/32 inches x 7 inches x 9-21/32 inches(excluding protrusions) Controller Supported Equipment IP/RS422 AW-UE150W/K, AW-HR140*1, AW-HE130W/K*1, AW-HN130W/K*1, AW-UE70W/K*1, AW-UN70W/K*1, AW-HE40 Series*1, AW-HN40HW/HK*1, AW-HE38HW/HK*1, AW-HN38HW/HK*1 Input/Output Connector Input DC 12 V IN XLR 4-pin 3G-SDI IN SMPTE292 / 75 Ω (BNC x 1) Supported formats: 1080/59.94p*2, 1080/50p*2, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF Output ACTIVE THRU OUT SMPTE292 / 75 Ω (BNC x 1) Input/Output IP CONT: ======== 100BASE-TX ———- PoE+ input ———- Connection cable: LAN cable, max. 100 m (328 ft) ・When connecting the unit via a switching hub: Straight cable or a cross cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended ・When connecting the unit directly: Crossover cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended ================ SERIAL CONT (RJ-45): ======== RS-422 (control signals for remote cameras), TALLY OUT ———- Connecting cable: Straight cable (category 5e or better shielded cable), max. 1000 m (3280 ft) ———- TALLY OUT: Open collector output (negative logic) Maximum voltage resistance DC 24 V, Maximum current 50 mA ================ TALLY/GPIO 1 ======== D-sub 25-pin, female, inch thread ———- TALLY IN : 10 inputs (for receiving photocoupler signals) ———- GPI : 6 inputs (for receiving photocoupler signals) GPIO : 5 inputs (for receiving photocoupler signals) or 5 outputs (open collector outputs, negative logic) ・Input/output switched with menu settings ================ GPIO 2 ======== D-sub 25-pin, female, inch thread ———- GPI : 10 inputs (for receiving photocoupler signals) GPIO : 10 inputs (for receiving photocoupler signals) or 10 outputs (open collector outputs, negative logic) ・Input/output switched with menu settings Reserve connectors: 2 connectors (For future expansion feature) LCD Display 7-inch Touch Panel GUI Monitor (WVGA (800×480) ) SD Memory Card Slot SDHC / SDXC Memory Card Slot x 1 Connection Specifications No. of Connectable Cameras 200 (IP), 5 (RS422) No. of Camera Selection Buttons 10 No. of Camera Groups 20 (10 units per 1 group) Memory Preset Memory No. of memory : presets 100 Tracing Memory No. of cameras : Cam1 to Cam10 Recording time, no. of memory settings : Maximum 5 min. total per camera, maximum of 10 settings per camera Other Functions No. of User Assignable Buttons 6 + up to 10 on the LCD menu Pan / Tilt Speed Adjustment 7 levels Tally LED display color green / red Note *1: Connection with the AW-RP150GJ is planned for future support. Contact your sales representative for further information on when support will be available for this feature. Use may require a software version update. *2: Level-A support only. -

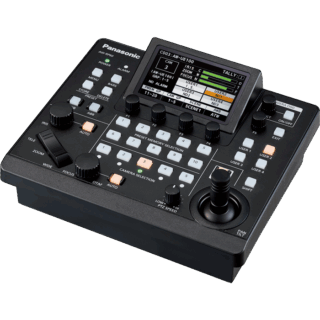

PTZ Camera Systems Remote Camera Controller AW-RP60GJ
Read morePower Requirements 12 V DC (10.8 V to 13.2 V) PoE* IEEE802.3af standard: 42 V to 57 V DC (Camera Input) Current Consumption 0.9 A (XLR connector input), 0.3 A (PoE power supply) Mass 1.5 kg (3.31 lbs) Dimensions (W x H x D) (mm) W 210 mm x H 92 mm x D 177 mm (excluding protrusions) Dimensions (W x H x D) (inch) 8-9/32 inches x 3-5/8 inches x 6-31/32 inches (excluding protrusions) Display 3.5-type liquid crystal (QHD 960 x 540) Connection Specifications No. of Connectable Cameras : 200 (IP), 5 (RS422) *Up to 100 for cameras other than the AW-UE150 Remote Camera Selection : 5 (6 to 200 controlled from the LCD) No. of Camera Groups : 40 (5 units/group) No. of Memory Presets : 100 Note *PoE is the abbreviation for Power over Ethernet.
