Category: PTZ Camera

Showing all 7 results

Quick View
PTZ Camera Systems 4K Integrated Camera AW-UE100W/K

Power Requirements Main unit: DC 12 V±10% (10.8 V to 13.2 V), AC adaptor: AC 100 V to 240 V
PoE++ Complies with IEEE802.3bt: DC 42 V to 57 V (camera end) (supports software authentication (LLDP communication))
Current Consumption Main unit: 3.0 A (DC jack input), 1.2 A (PoE++ power supply), AC adaptor (included): 3.0 A
Bec Approx. 2.2 kg (4.85lbs) (excluding cable cover, direct ceiling mount bracket) Approx. 2.3 kg (5.07lbs) (excluding direct ceiling mount bracket)
Dimensions 169.2 mm x 170.6 mm x 204.6 mm (6.66 inches x 6.72 inches x 8.06 inches) (excluding protrusions, cable cover, and direct ceiling mount bracket)
Camera Unit
Image Sensor 1/2.5-type 4K MOS x 1
Lens Electric powered 24x optical zoom F1.8 to F4.0 (f = 4.12 mm to 98.9 mm, converted to 35 mm: 25.0 mm to 600.0 mm) i.Zoom (UHD: 28x, FHD: 36x) (*switches from optical 24x i.Zoom digital zoom)
Field of View Range Horizontal field of view: 74.1° (wide) to 3.3° (tele) Vertical field of view: 46.0° (wide) to 1.9° (tele) Diagonal field of view: 81.8° (wide) to 3.8° (tele)
Horizontal Resolution 1,500 TV lines Typ (center area)
Output Formats [4K formats] 2160/59.94p, 2160/50p, 2160/29.97p (native), 2160/25p (native), 2160/24p (native), 2160/23.98p (native) [HD formats] 1080/59.94p, 1080/50p, 1080/29.97p (native), 1080/29.97PsF, 1080/25p (native), 1080/25PsF, 1080/23.98p over 59.94i, 1080/24p (native), 1080/23.98p (native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Output
HDMI HDMI 2.0 connector 4:2:2/10 bit*3*4
12G-SDI OUT SMPTE2082-1, SMPTE292 compliant/75 Ω (BNC x 1)*5
3G-SDI OUT SMPTE292/75 Ω (BNC x 1)*5
Input/Output
Сеть LAN for IP control and video transmission/PoE++ terminal (RJ-45)
RS-422 CONTROL IN RS422A (RJ-45)
MIC/Line Input Supported (SDI/HDMI/IP), AAC compatible (IP only) O3.5 mm stereo mini jack For mic input, input level: -40 dBV (0 dB = 1 V/Pa, 1 kHz) plug-in power compatible, supply voltage: 2.5 V ±0.5 V For line input, input level: -10 dBV Input volume variable range: -36 dB to 12 dB (3 dB step) embedded audio output level: -12 dBFS Sampling frequency: 48 kHz Quantified bit count: 24bit (SDI, HDMI), 16bit (IP)
Pan Tilt Head Unit
Panning Range ±175°
Tilting Range -30° to 210°*6
IP Streaming
Video Compression Format JPEG (MJPEG), H.264, H.265, NDI®|HX, High bandwidth NDI®
Resolution 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180
New Functions
NDI Support NDI®, NDI®|HX: Included as standard*7*8
Mechanical Pan/Tilt Direct Drive system

Read more
Compare
Quick View

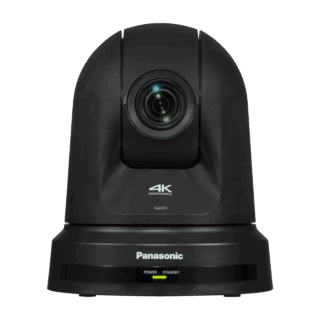

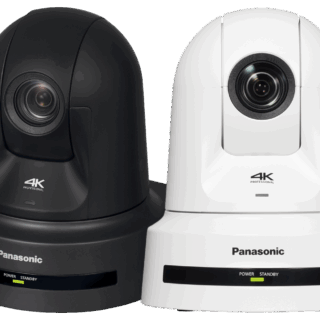

PTZ Camera Systems 4K Integrated Camera AW-UE80W/K

Comprehensive
Power Requirements 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
PoE++* IEEE802.3bt compliant: DC42 to 57 V
(Software authentication (LLDP) is supported)
Current Consumption 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Allowable Humidity Ranges 20 ％ to 90 ％ (no condensation)
Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
Mass Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket),
Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket)
Dimensions (W x H x D) 170.0 mm x 211.0 mm x 171.0 mm
(6.693 inches x 8.307 inches x 6.732inches)
Finish AW-UE80W: White
AW-UE80K: Black
Compatible controllers AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1, 2, AK-HRP1005*1, 2, AK-HRP1015*2, AK-HRP250*
Camera part
Image Sensors 1/2.5-type 4K MOS x 1
Effective pixels Approx. 8,490,000 pixel
Lens Motorized Optical 24x zoom, F1.8 to F4.0
[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);
35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
Zoom • Optical zoom: 24x
• i.Zoom UHD 28x, FHD 36x
• Digital extender zoom: 1.4x, 2x
Conversion Lens Not supported
Angle of View Range Horizontal angle of view: 74.1° (wide) to 3.3° (tele)
Vertical angle of view: 46.0° (wide) to 1.9° (tele)
Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Optical Filter Through, 1/4, 1/16, 1/64, IR through
(IR through is used as “night mode”)
Focus Switching between auto and manual
Focus Distance Entire zooming range: 1200 mm (3.9 ft)
Wide end: 100 mm (0.33 ft)
Color Separation Optical System 1MOS
Minimum Illumination 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
Horizontal Resolution 1,500 TV Typ (Center area, UHD mode, wide)
1,000 TV Typ (Center area, FHD mode, wide)
Gain Selection Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB)
Frame Mix Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Electronic Shutter Speed 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan 59.94p/59.94i 60.0 Hz to 7200 Hz
29.97p 30.0 Hz to 7200 Hz
23.98p/24p 24.0 Hz to 7200 Hz
50p/50i 50.0 Hz to 7200 Hz
25p 25.0 Hz to 7200 Hz
Gamma HD / Normal / Cinema1 / Cinema2 / Still Like
White Balance • ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)
• AWB: AWB-A / AWB-B
• VAR (selectable between 2000 K and 15000 K by designating a value)
Chroma Amount Variability OFF, -99 ％ to 99 %
Output Format SDI HD 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just),
23.98p (Native), 720/59.94p, 50p
HDMI 4K 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
HD 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Synchronization System
Internal/External synchronization (BBS/Tri-level sync)
Input
Input Connector DC 12 V IN, G/L IN(BNC)
BBS (Black Burst Sync), tri-level sync supported)
Output
Video Output HDMI HDMI 2.0 connector
4:2:2/10bit
• HDCP is not supported.
• Viera Link is not supported.
3G-SDI OUT SMPTE292M/424M/ 75 Ω(BNC×1)
• Level-A/Level-B supported
Input/output
Input/Output Connector LAN LAN terminal for IP control (RJ-45) 100BASE-TX/1000BASE-T
RS-422 CONTROL IN RS422A(RJ-45)
MIC/LINE input AAC compatibility (compatible with IP only)
Φ3.5 mm stereo mini jack
• During MIC input
Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz)
Supply voltage: 2.5 V±0.5 V (plug-in power compatible)
“• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)
Approx. 20 kΩ (when plug-in power is turned OFF)”
• During LINE input
Input level: -10 dBV
Input impedance: Approx. 3 kΩ
• Input volume variable range: -36 dB to 12 dB (3 dB step)
• Embedded audio output level: -12 dBFS
• Sampling frequency: 48 kHz
• Quantization bit rate: 24 bit (SDI, HDMI), 16 bit (IP)

Read more
Compare
Quick View

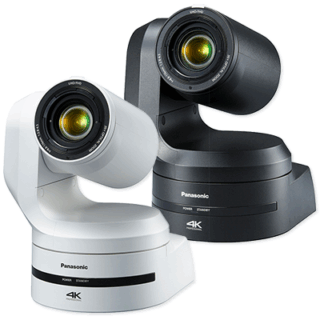

PTZ Camera Systems 4K Integrated Camera AW-UE150W/K

Power Requirements 12 V DC (10.8 V to 13.2 V)
PoE++ IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
Current Consumption 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity 20 % to 90 % (no condensation)
Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
Mass Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
Dimensions (W x H x D) (mm) 213 mm x 267 mm x 219 mm (excluding protrusions, direct ceiling mount bracket)
Dimensions (W x H x D) (inch) 8-3/8 inches x 10-1/2 inches x 8-5/8 inches (excluding protrusions, direct ceiling mount bracket)
Finish AW-UE150WP/AW-UE150WE: Pearl white AW-UE150KP/AW-UE150KE: Black
Controller Supported*1 AW-RP150GJ
Camera Unit
Imaging Sensors 1-type 4K MOS×1
Lens Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches); 35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)]
Zoom ・Optical zoom: 20x ・i.Zoom: UHD 24x, FHD 32x ・Digital zoom: 10x
Conversion Lens Not supported
Angle of View Range Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Optical Filter Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Focus Switching between auto and manual
Focus Distance Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft)
Color Separation Optical System 1MOS
Standard Sensitivity F9, 2000 lx (When normal mode is selected)
Minimum Illumination 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N 60 dB or more
Horizontal Resolution 1600 TV lines Typ (Center area)
Gain Selection Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB
Frame Mix*3 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Electronic Shutter Speed 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Syncro Scan 59.94p/59.94i : 60.00 Hz to 7200 Hz 29.97p : 30.00 Hz to 7200 Hz 23.98p/24p : 24.00 Hz to 7200 Hz 50p/50i : 50.00 Hz to 7200 Hz 25p : 25.00 Hz to 7200 Hz
Gamma HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
White Balance ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability OFF, -99 % to 99 %
Scene File Scene1, Scene2, Scene3, Scene4
Output Format 4K 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4 HD 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Synchronization System Internal / External synchronization (BBS / Tri-level sync)
Input
Input Connector DC 12 V IN, G/L IN (BNC) ・BBS (Black Burst Sync), tri-level sync supported
Output
Video Output HDMI HDMI 2.0 standard 4:2:2/10bit ・HDCP is not supported. ・Viera Link is not supported. 12G-SDI OUT SMPTE 2082-1 standard / 75 Ω (BNC x 1) 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) ・Level-A/Level-B supported MONI OUT SMPTE292 / 75 Ω (BNC x 1) Optical Fiber SFP+ standard Single Fiber ・The signal sent is the same as 12G-SDI OUT. ・This unit does not support input by optical signals.
Input/Output
Input / Output Connector LAN LAN connector for IP control (RJ-45) RS-422 CONTROL IN RS-422A (RJ-45) MIC/LINE input φ3.5 mm stereo mini jack Input impedance: High impedance ・During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) ・During LINE input Input level: Approx. -10 dBV ±3 dBV
Pan-Tilt Head Unit
Camera/Pan-Tilt Head Control IP connecting cable ・LAN cable*6*7 : (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft) AW protocol connecting cable LAN cable*6 (category 5e or above, straight cable) max. 1000 m (3280 ft)
Installation Method Stand-alone (Desktop) or suspended (Hanging)*8
Pan/Tilt Operation Speed Minimum speed 0.08°/s Maximum speed 60°/s or higher*9 ・Maximum speed is 180°/s in high-speed mode
Panning Range ±175°
Tilting Range -30° to 210°*10
Quietness NC35 or less
Supported operating systems and web browsers*11
Supported operating systems and web browsers Windows Microsoft(R) Windows(R) 7, 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac Mac OS 10.13, Mac OS 10.12, Mac OS 10.11, Safari 11, Google Chrome iPhone / iPad iOS 11.4.1 Google Chrome
IP Streaming
Image Streaming Mode JPEG (MJPEG), H.264, H.265
Image Resolution 3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Image Transmission setting (JPEG) Frame Rate: Maximum 30 fps Image quality (Fine / Normal)
Image Transmission Setting (H.264) ■Frame Rate [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps) [50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps) ■Max Bit Rate HD : 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/32768kbps/40960kbps/51200kbps/76800kbps UHD : 12800kbps/25600kbps/51700kbps/76800kbps
Image Transmission Setting (H.265) ■Image Transmission Type: Unicast port (AUTO) Unicast port (MANUAL) Multicast port ■Frame Rate [60Hz] 30fps [50Hz] 25fps ■Max Bit Rate 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps
Audio Compression Type AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol ■IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP ■IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP
Tally LED display color red / green

Read more
Compare

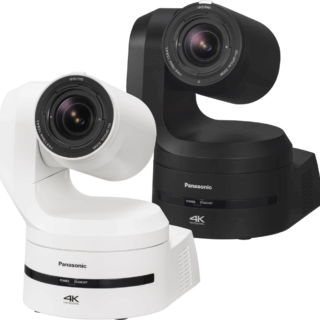

PTZ Camera Systems 4K Integrated Camera AW-UE160W/K

Output Format (UHD/FHD SDI)	4K2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) 2160/60p will be supported in version upgrade. HD1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p1080/119.88p and 1080/100p use two 3G/SDI OUTPUT1/2 channels.*No output from 12G/SDI.
Output Format (HDMI)	4K 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) *2160/60p will be supported in version upgrade. HD 1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p
Output Format (Fiber(Only Video))	4K 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) *2160/60p will be supported in version upgrade. HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Supported Protocol	・Network Protocol: ICMP, ARP, GARP, MLD ・Transmission Protocol: TCP/IP, UDP/IP ・Application Protocol: 　IPv4 : HTTP, HTTPS, DNS, NTP, DHCPv6,MDNS, SNMP, 802.1X 　IPv6 : HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X ・Video Streaming Protocol: 　RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI®1 HX version 2, NDI®1 High Bandwidth ・External Device Cooperation Protocol: FreeD, TSL5.0, SNMP
Current Consumption	5.0 A (XLR IN connector), 1.5A (PoE++ power supply)
Power Requirements	12VDC±10%(10.8V to 13.2V)
Ambient Operating Temperature	0 °C to +40 °C (32 °F to +104 °F)
PoE++	IEEE802.3bt standard :DC 42 V to 57V (Camera Input)*Limited in function when PoE used.(Software authentication (LLDP) is supported))
Storage Temperature	-20 °C to +50 °C (-4 °F to +122 °F)
Ambient Operating Humidity	20 % to 90 % (no condensation)
Mass	Approx. 4.6kg (10.14lbs) (excluding mount bracket)
Finish	AW-UE160W : Pearl White AW-UE160K : Black
Controller Supported	AW-RP150，AW-RP60，AK-HRP1010，AK-HRP1015，AK-HRP250 IP only. Other ROP will be compatible in the future. *Digext Certification operation of AW-RP150 and AW-RP60 are not guaranteed.
Lens	Motorized Optical 20x Zoom F2.8 to F4.5(f=8.8 mm to 176.0 mm, 35mm equivalent:24.5 mm to 490.0 mm)
Imaging Sensors	1-type (1″)* 4K MOSx1 *Effective size Effective Pixels: Approx. 9,620,000 pixels
Camera Unit	–
Optical Filter	Through、1/4, 1/16, 1/64 *equipped with Low pass filter(Through is used as “night mode”)
Focus	Switching between auto and manual
Conversion Lens	Not Supported
Angle of View Range	Horizontal: 75.1°(wide) to 4.0°(tele) Vertical: 46.7°(wide) to 2.3°(tele) Diagonal: 82.8°(wide) to 4.6°(tele)
Focus Distance	Entire zooming range: 1000 mm, Wide end: 100 mm
Standard Sensitivity	F11/2,000lux (Normal), F14/2,000lux (Low Light)
Color Separation Optical Systems	1MOS
Horizontal Resolution	1,600 TV Typ (center area, UHD Mode, Wide)
Gain Selection	Auto, -6dB to 12dB *1 dB step increments can be set.
Frame Mix	Auto, 0dB, 6dB, 12dB, 18dB, 24dB*If format is set in 1080/119.88p, 1080/100p, 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/25p, it cannot be set.
Electronic Shutter Speed	60p: 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 59.94p/59.94i: 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 50p/50i: 1/60, 1/100, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 29.97p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1, 500, 1/2,000 25p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1,500, 1/2,00 23.98p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 24p: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 59.94p･120fps: 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 50p･100fps: 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
Synchro Scan	60p: 60.00Hz to 7,200Hz 59.94p/59.94i: 60.00Hz to 7,200Hz 50p/50i: 50.00Hz to 7,200Hz 29.97p: 30.00Hz to 7,200Hz 25p: 25.00Hz to 7,200Hz 23.98p: 24.00Hz to 7,200Hz 59.94p･120fps: 120Hz to 7,200Hz 50p･100fps: 100Hz to 7,200Hz
White Balance	ATW､3200K, 5600K AWB-A､AWB-B VAR (selectable between 2000 K and 15000 K by designating a value) *ATW Speed 3-stage variables.
Gamma	HD / NORMAL / CINEMA1 / CINEMA2 *HLG is set in other menuMASTER GAMMA (0.15~0.75)R GAMMA (-75~+75)B GAMMA (-75~+75) R BLACK GAMMA (-20~+20)B BLACK GAMMA (-20~+20)
Scene File	Scene 1 to 8
Chroma Amount Variability	OFF, -100% to 40%
HDMI	HDMI 2.0 connector 4:2:2/10bit HDCP is not supported. Viera Link is not supported.
Synchronization System	Internal/External synchronization (BBS/Tri-level sync)
Input	DC 12 V IN, G/L IN(BNC)
G/L In	BBS (Black Burst Sync), tri-level sync supported)
Output	–
AUDIO INPUT 1/2	XLR(2ch) or MIC/LINE Input compatibles /HDMI /IP)AAC compatibility (compatible with IP only)3-pin XLR female connectors, 2ch, balanced input・During MIC input Input level: -50dBu or -60dBu/-40dBu(0 dB=1 V/Pa, 1 kHz) Phantom power compatible, Supply voltage:47 V±2 V Input impedance: Approx. 10kΩ・During LINE input Input level : 0 dBu ( or +4dBu/-20dBu) Input impedance: Approx. 10kΩ・Input volume variable range: -40 dB ~ 0dB ~ +20 dB (1dBstep)・Embedded audio output level: -12dBFS/-18dBFS/-20dBFS ・Sampling frequency: 48 kHz ・Quantization bit rate : 24 bit(SDI, HDMI), 16bit(IP)
12G SDI OUT	SMPTE2082-1, SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported
3G SDI OUT1	SMPTE424M /SMPTE292M / 75 Ω(BNC×1)　*Level-A/Level-B supported
3G SDI OUT2/PM	SMPTE424M /SMPTE292M / 75 Ω(BNC×1)　*Level-A/Level-B supported
SFP+	SFP+ standard (Single Fiber) *This unit does not support input by optical signals MSA standard compliant product
Сеть	LAN connector for IP control (RJ-45)
USB	USB3.0 HOST(5G mobile router with USB tethering support) *Limited power supply to USB Wifi dongle.
RS-422	CONTROL IN RS422A (RJ-45)
Input/Output	–
IP Connecting Cable	・If you have PoE++ ethernet hub LAN cable 1( category 5e or above､straight cable) max. 100 m (328 ft) ・If you don’t have PoE++ ethernet hub LAN cable 1( category 5e or above､straight cable) max. 100 m (328 ft) 1 STP(Shielded Twisted Pair) is recommended 2 Category 6 or above is used for 4K video transmission.
Pan-tilt Head Control	–
AW Protocol Connecting Cable	LAN cable* (category 5e or above, straight cable) max. 1000 m (3280 ft) *STP (Shielded Twisted Pair) is recommended
Pan/Tilt Operation Speed	Speed range: 0.08 °/s ~180°/s( Normal mode) 3 speed modes installed: Normal: ~60°/s, Fast1: ~90°/s, Fast2: ~180°/s
Quietness	NC35 or less *When standing still, NC25 or less
Tilting Range	-30°~ 210° *Depending on the pan or tilt position, the camera may be reflected in the image.
Panning Range	±175°
Pan-Tilt Head Unit	–
Installation Method	Stand-alone (Desktop) or suspended (Hanging) *To ensure safety, the unit must be secured using the mount bracket supplied.
Windows	Windows®10 Microsoft Edge Google Chrome
Supported operating systems and web browsers	–
Image Resolution	3840×2160, 1920×1080, 1280×720, 640×360
Mac	macOS 10.13 / Safari 13 macOS 10.14 / Safari 13 macOS 10.15 / Safari 13 macOS 10.15 / Google Chrome
Android	Android OS Google Chrome
IP Streaming	–
Image Streaming Mode	JPEG(MJPEG), H.264, H.265, NDI®1 HX Ver2, NDI®1 High Bandwidth
Image Transmission setting (JPEG)	・Frame rate : Max. 30fps No bit rate specified JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate ・Image quality: Fine/Normal
Image Transmission Setting (H.264)	・Transmission Type : Unicast port (AUTO), Unicast port (MANUAL), Multicast port ・Transmission mode :CBR, VBR ・Frame Rate [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps,60fps) [50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps,50fps) ・Max to Min Bit Rate: 2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps
iPhone / iPad / iPod touch	iOS, Safari, iPadOS
Image Transmission Setting (H.265)	・Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port ・Transmission Mode: CBR,VBR Frame Rate [60Hz] 30fps / 60fps [50Hz] 25fps / 25fps ・Max to Min Bit Rate: 2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps
Audio Compression Type	AAC-LC, 48kHz/16bit/2ch
Output Format	・Video Format (Full x1, MONI x1.Crop x1, all of these same format)　1080/60p, 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native), 25p(Native), 　1080/24p, 1080/23.98p(Native), 720/59.94p, 50p・Audio Specification INPUT1/INPUT2　PCM/48khz/24bit/1ch x2
Image Streaming Setting	・NDI®1 High Bandwidth 　Transmisiion Type: TCP /UDP, Unicast/Multicast 　Bit Rate: Max. 250Mbps ・NDI®1 HX version.2: 　Transmission Type: TCP/UDP, Unicast/Multicast 　Frame Rate: 　[60Hz] 5fps/15fps/30fps/60fps 　[50Hz] 5fps/12.5fps/25fps/50fps 　Max Bit Rate: 　512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps 　/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps
Audio Compression Type 2	NDI®1 High Bandwidth: AAC, 48kHz, 2ch NDI®1 HX Ver.2: AAC-LC, 48kHz/16bit/2ch
Number of Output (TX)	Video: 3 line (Full x1, MONI x1.Crop x1) Audio: 2 line Auxiliary data: No output
Number of Input (RX)	Video: 1 line(RETURN) *Out from 3G SDI OUT2(Video is changed in the OSD menu) Audio: No input Auxiliary data: No input
Optional Accessories	–
Cropping	Select from 3 types of images from 3G/SDI OUTPUT2, Crop Zoom available
Image Stabilization	Hybrid method of OIS 2-axis + Roll direction correction MENU switching: select between OFF / O.I.S.(STABLE) / O.I.S.(PAN/TILT) / HYBRID(STABLE) / HYBRID(PAN/TILT)
Power LED	ON/OFF control
Tripod Screw Penetration Measures	Possible
Privacy Mode	The lens surface faces downward when standing by (ON/OFF)
Input Format	Video Format (Full x1, MONI x1.Crop x1, all of these same format)1080/60p, 1080/59.94i, 50i, 1080/29.97p(Native), 25p(Native) 1080/24p, 1080/23.98p(Native), 720/59.94p, 50p
New Feature	–
HDR/SDR	HLG/BT.2020 compatible, SDR/BT.709 compatible
F Number Display	Displayed on the AW-RP150 and AW-RP60 sides
NDI	NDI®1 High Bandwidth, NDI®1 HX Ver.2 included as standard
IP menu display	supported　*Non-synchronous with SDI-OUT
VR (FreeD) (IP/RS422)	supported
Yellow Tally	supported
PTP	supported
5G/WiFi 6	Compatible with recommended products only
WFM display	Output with video superimposed from 3G/SDI OUTPUT2
Return Video Output	Output return video input from ST 2110 via SDI_OUT2
Horizontal Level Gauge	ON/OFF control in OSD MENU or Web GUI
Wireless Remote Controller	AW-RM50AG（Size “AA” dry battery x 2, obtained separately）
Dimensions (W x H x D)	213.0 mm x 277.0 mm x 240.0 mm (8.39inches x 10.91inches x 9.45inches) [excluding protrusions, cable cover, ceiling mount bracket]
Supported Format	ST 2110: 10/20/21/30 PTP: ST 2059-2 NMOS: IS-04/IS-05
Output Format (ST 2110)	HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p
SFP+(ST 2110)	Compatible protocol: -ST 2110-10/-20/-21/-30 -PTP ST 2059-2 -NMOS IS-04/IS-05 Output number: Video x3 (Full, Crop, Monitor), Audio x2 Input number: Video x1 (RETURN) Video format: FHD　*Same as system format
ST 2110
Zoom	• Optical Zoom: 20x• i.Zoom: UHD 24x, FHD 32x• Digital Extender Zoom: 1.4x, x
	4K 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p､720/59.94p, 720/50p
	3840×2160, 1920×1080, 1280×720
Note	*1:NDI® is a registered trademark of Vizrt NDI AB in the United States and other countries.

Compare

Quick View

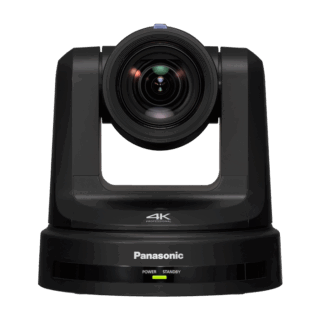

PTZ Camera Systems 4K Integrated Camera AW-UE20W/K

General
Power Requirements	DC12 V ± 10 % (10.8 V to 13.2 V) (Supplied AC adapter)
PoE+	IEEE802.3 at compliant
Current Consumption	TBD
Ambient Operating Temperature	0 °C to 40 °C (32℉ to 104℉)
Ambient Operating Humidity	20 ％ to 90 ％ (no condensation)
Storage Temperature	-20°C to 50°C (-4 °F to 122 °F)
Mass	TBD
Dimensions (H x W x D)	TBD
Finish	AW-UE20W: WhiteAW-UE20K: Black
Controller Supported	AW-RP150GJ, AW-RP60GJ, AW-RM50AG
Camera Unit
Image Sensor	1/2.8-type MOS×1
Lens	Electric 12 x optical zoom F1.6～F2.8 (f = 3.9 mm ～ 46.8 mm)
Zoom	Optical zoom: 12 x
Angle of View Range	Horizontal angle of view: 71° (wide) to 6° (tele) Vertical angle of view: 43° (wide) to 3° (tele) Diagonal angle of view: 79° (wide) to 7° (tele)
Minimum Illumination	TBD
S/N	TBD
Horizontal Resolution	TBD
Output Format
Output Format \| HDMI \| 4K	2160/30p, 2160/29.97p, 2160/25p
Output Format \| HDMI \| HD	1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p,1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p
Output Format \| SDI \| HD	1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i,1080/30p, 1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p
Input	DC 12 V IN
Output
Video Output	HDMI, 3G-SDI OUT
Input/Output
Input/Output Connector	LAN, RS-422, AUDIO IN, USB, RS-232C IN, RS-232C OUT
Pan Tilt Head Unit
Installation Method	Stand-alone (Desktop) or suspended (Hanging)*2
Panning Range	±170°
Tilting Range	-30°～90° *3
Quietness	NC40 or less
Supported operating systems and web browsers	*4
Windows	Windows 10 Windows® Internet Explorer® 11（32 bit / 64 bit） Microsoft Edge Google Chrome
Mac	Mac OS 10.15 Mac OS 10.14 Mac OS 10.13 Mac OS 10.12 Safari Google Chrome
IP Streaming
Image Streaming Mode	JPEG(MJPEG), H.264, H.265
Image Resolution	3840×2160, 1920×1080, 1280×720, 640×360
Image Transmission Setting
Note	1 The main unit may appear in the video depending on the pan/tilt position. 2 To ensure safety, the unit must be secured using the mount bracket supplied. 3 The main unit may appear in the video depending on the pan/tilt position. 4 Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support.

Compare

Quick View

PTZ Camera Systems 4K Integrated Camera AW-UE30W/K

General
Power Requirements	DC12 V ± 10 % (10.8 V to 13.2 V) (Supplied AC adapter)
PoE+	IEEE802.3 at compliant
Current Consumption	TBD
Ambient Operating Temperature	0 °C to 40 °C (32℉ to 104℉)
Ambient Operating Humidity	20 ％ to 90 ％ (no condensation)
Storage Temperature	-20°C to 50°C (-4 °F to 122 °F)
Mass	TBD
Dimensions (H x W x D)	TBD
Finish	AW-UE20W: WhiteAW-UE20K: Black
Controller Supported	AW-RP150GJ, AW-RP60GJ, AW-RM50AG
Camera Unit
Image Sensor	1/2.8-type MOS×1
Lens	Electric 12 x optical zoom F1.6～F2.8 (f = 3.9 mm ～ 46.8 mm)
Zoom	Optical zoom: 12 x
Angle of View Range	Horizontal angle of view: 71° (wide) to 6° (tele) Vertical angle of view: 43° (wide) to 3° (tele) Diagonal angle of view: 79° (wide) to 7° (tele)
Minimum Illumination	TBD
S/N	TBD
Horizontal Resolution	TBD
Output Format
Output Format \| HDMI \| 4K	2160/30p, 2160/29.97p, 2160/25p
Output Format \| HDMI \| HD	1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p,1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p
Output Format \| SDI \| HD	1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i,1080/30p, 1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p
Input	DC 12 V IN
Output
Video Output	HDMI, 3G-SDI OUT
Input/Output
Input/Output Connector	LAN, RS-422, AUDIO IN, USB, RS-232C IN, RS-232C OUT
Pan Tilt Head Unit
Installation Method	Stand-alone (Desktop) or suspended (Hanging)*2
Panning Range	±170°
Tilting Range	-30°～90° *3
Quietness	NC40 or less
Supported operating systems and web browsers	*4
Windows	Windows 10 Windows® Internet Explorer® 11（32 bit / 64 bit） Microsoft Edge Google Chrome
Mac	Mac OS 10.15 Mac OS 10.14 Mac OS 10.13 Mac OS 10.12 Safari Google Chrome
IP Streaming
Image Streaming Mode	JPEG(MJPEG), H.264, H.265
Image Resolution	3840×2160, 1920×1080, 1280×720, 640×360
Image Transmission Setting
Note	1 The main unit may appear in the video depending on the pan/tilt position. 2 To ensure safety, the unit must be secured using the mount bracket supplied. 3 The main unit may appear in the video depending on the pan/tilt position. 4 Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support.

Compare

Quick View

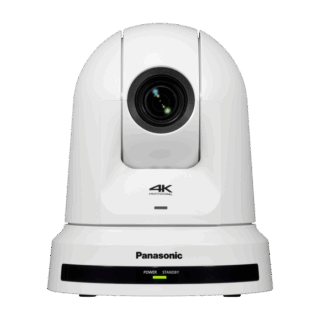

PTZ Camera Systems 4K Integrated Camera AW-UE50W/K

General
Power Requirements	12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
PoE+	IEEE802.3at compliant : DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported)
Current Consumption	1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply)
Ambient Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity	20 ％ to 90 ％ (no condensation)
Storage Temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Mass	Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket)
Dimensions (W x H x D) (mm)	160.0 mm x 192.1 mm x 166.0 mm (Excluding protrusions, cable cover, ceiling mounting bracket)
Dimensions (W x H x D) (inch)	6.299 inches x 7.563 inches x 6.535 inches (Excluding protrusions, cable cover, ceiling mounting bracket)
Finish	AW-UE50W: WhiteAW-UE50K: Black
Controller Supported	AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP10002,3, AK-HRP10052,3, AK-HRP10153, AK-HRP2503
Camera Unit
Imaging Sensors	1/2.5-type 4K MOS x1
Lens	Motorized Optical 24x zoom, F1.8 to F4.0 [f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches); 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
Zoom	• Optical zoom: 24x • i.Zoom UHD 28x, FHD 36x • Digital extender zoom: 1.4 x , 2 x
Conversion Lens	Not supported
Angle of View Range	Horizontal angle of view: 74.1° (wide) to 3.3° (tele) Vertical angle of view: 46.0° (wide) to 1.9° (tele) Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Optical Filter
Focus	Switching between auto and manual
Focus Distance	Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft)
Color Separation Optical System	1MOS
Minimum Illumination	3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N
Horizontal Resolution	UHD: 1,500 Typ (Center area)FHD: 1,000 Typ (Center area)
Gain Selection	Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB)
Frame Mix	Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Electronic Shutter Speed
Electronic Shutter Speed \| 59.94p/59.94i	1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed \| 29.97p	1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed \| 23.98p/24p	1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed \| 50p/50i	1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed \| 25p	1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Syncro Scan
Synchro Scan \| 59.94p/59.94i	60.0 Hz to 7200 Hz
Synchro Scan \| 29.97p	30.0 Hz to 7200 Hz
Synchro Scan \| 23.98p/24p	24.0 Hz to 7200 Hz
Synchro Scan \| 50p/50i	50.0 Hz to 7200 Hz
Synchro Scan \| 25p	25.0 Hz to 7200 Hz
Gamma	HD / Normal / Cinema1 / Cinema2 / Still Like
White Balance	• ATW : 3200 K, 5600 K (ATW Speed 3-stage variables.)• AWB : AWB-A / AWB-B• VAR (selectable between 2000 K and 15000 K by designating a value)
Chroma Amount Variability	OFF, -99 ％ to 99 %
Scene File
Output Format
Synchronization System
Input
Input Connector	DC 12 V IN
Output
Output Format \| SDI \| HD	1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Output Format \| HDMI \| 4K	2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)
Output Format \| HDMI \| HD	1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Video Output
Video Output \| HDMI	HDMI 1.4 connector, 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported.
Video Output \| 3G-SDI OUT	SMPTE292M, 424M/ 75 Ω (BNCx1) • Level-A/Level-B supported
Input/Output
Input/Output Connector
Input/Output Connector \| LAN	LAN terminal for IP control (RJ-45)
Input/Output Connector \| RS-422	CONTROL IN RS422A (RJ-45)
MIC/Line Input	AAC compatibility (compatible with IP only) Φ3.5 mm stereo mini jack • During MIC input Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz) Supply voltage: 2.5 V±0.5 V (plug-in power compatible) “• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON) Approx. 20 kΩ (when plug-in power is turned OFF)” • During LINE input Input level: -10 dBV Input impedance: Approx. 3 kΩ • Input volume variable range: -36 dB to 12 dB (3 dB step) • Embedded audio output level: -12 dBFS • Sampling frequency: 48 kHz
Pan Tilt Head Unit
IP Connecting Cable	• If you have a PoE+ ethernet hub LAN cable6 (category 5e or above, straight cable) Max 100 m (328 ft) • If you don’t have a PoE+ ethernet hub LAN cable6 (category 5e or above, straight cable) Max 100 m (328 ft)
AW Protocol Connecting Cable	• LAN cable*6 (category 5e or above, straight cable) Max 1000 m (3280 ft)
Camera/Pan-Tilt Head Control
Installation Method	Stand-alone (Desktop) or suspended (Hanging)*7
Pan/Tilt Operation Speed	Speed range: 0.08°/s to 60°/s (Normal mode)*8 • 3 speed modes installed Normal:60°/s, Fast1:90°/s, Fast2:180°/s
Panning Range	±175°
Tilting Range	-30°to 90°*9
Quietness	NC25 or less
Supported operating systems and web browsers	*10
Windows	Windows 10 Windows® Internet Explorer® 11 (32 bit / 64 bit) Microsoft Edge Google Chrome
Mac	Mac OS v11.0.1 / Safari 14.01 Mac OS v11.0.1 / Google Chrome Mac OS v10.15 / Google Chrome Mac OS v10.14 / Google Chrome
iPhone / iPad	iOS Safari iPadOS
Android	Android OS Google Chrome
IP Streaming
Image Streaming Mode	JPEG (MJPEG), H.264, H.265, NDI®1 HX version 211,12,13,14 (H.264)
Image Resolution	1920×1080, 1280×720, 640×360, 320×180
Image Transmission setting (JPEG)	Frame rate: Maximum 30fps Image quality (Fine / Normal)
Image Transmission Setting (H.264)	Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Image Transmission Setting (H.265)	Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type	AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol
Supported protocol \| IPv6	TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT
Supported protocol \| IPv4	TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
New Functions
F-Number Display	Displayed on the AW-RP150GJ and AW-RP60GJ sides
Menu Display on IP Video	Supported*15
Power LED	ON/OFF control
Tripod Screw Penetration Measures	Possible
Pan/Tilt Mechanical Method	New Direct Drive System
Image Stabilization	OIS 2-axis MENU switching: Select between Off/O.I.S.
Privacy Mode	The lens surface faces backward when standing by (ON/OFF) * Default is OFF
Other Functions
Tally LED display color	red / green
	NDI®*1 HX version 2: Upgradable
	1920×1080, 1280×720
	Transmission Type: Streaming method: TCP/UDP, Unicast/Multicast
	AAC-LC, 48 kHz, 16 bit, 2 ch
Note	1: NDI® is a registered trademark of Vizrt NDI AB in the United States and other countries. 2: Discontinued Model 3: Will be supported in the future 4: Can be set in 1 dB step increments. 5: Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF. 6: STP (Shielded Twisted Pair) is recommended. 7: To ensure safety, the unit must be secured using the mount bracket supplied. 8: Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode. 9: The main unit may appear in the video depending on the pan/tilt position. 10: Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support. 11: NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow. 12: NDI® is a registered trademark of NewTek, Inc. in the United States. 13: In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®\|HX is used to indicate high efficiency low bandwidth NDI®\|HX. In the NDI®\|HX mode, 4K video signals cannot be output. AW-UE50/AW-UE40 supports NDI®\|HX version 2 and Full HD output. 14: For details, please contact a sales representative of Panasonic. To use NDI®\|HX, the driver must be installed and activated. *15: Non-synchronous with SDI-OUT

Compare

Cart

Category: PTZ Camera

PTZ Camera Systems 4K Integrated Camera AW-UE100W/K

PTZ Camera Systems 4K Integrated Camera AW-UE80W/K

PTZ Camera Systems 4K Integrated Camera AW-UE150W/K

PTZ Camera Systems 4K Integrated Camera AW-UE160W/K

PTZ Camera Systems 4K Integrated Camera AW-UE20W/K

PTZ Camera Systems 4K Integrated Camera AW-UE30W/K

PTZ Camera Systems 4K Integrated Camera AW-UE50W/K

Cart
