Category: Live Switchers
Showing all 2 results
-
AV-HLC100 Live Streaming Production Center
Read morePower Supply DC 19 V (AC adaptor provided) Power Consumption 110 W Ambient Operating Temperature 0 °C to 40 °C (32°F to 104°F) Humidity 20 % to 80 % (no condensation) Mass Approx. 6.05 kg (13.34 lbs) Dimensions (W x H x D) 427 mm x 93 mm x 278 mm (16.8 inches x 3.67 inches x 10.96 inches) (excluding protrusions) Number of ME 1ME Number of switcher channel 10 ・ 8 External (selected from among 3G-SDI x 4, 3G-SDI x 3 + HDMI x 1, NDI®*2 sources x 8) ・ 2 Internal (CLIP x 1, STILL x 1) Number of Keyer 2 Keyer (PinP / Title) System Video Format 1080/59.94p*2 *3, 1080/59.94i, 1080/29.97PsF, 1080/23.98p, 1080/50p*2 *3, 1080/50i, 1080/25PsF 720/59.94p, 720/50p, 720/29.97p, 720/25p Video Input SDI x 4 or SDI x 3 + HDMI x 1*2 *4 Network Input Sources 8 ・ NDI®*1 input from Panasonic PTZ Camera that supports NDI®*1 HX and NDI®*1 compatible equipment ・ IP input from Skype TX compatible PC Audio Input 15 ・ 4-channel SDI/HDMI embedded audio x 4 ・ 4-channel NDI®*1 embedded audio x 8 ・ 6.35 mm balanced line x 2 ・ 3.5 mm diameter, stereo mini jack x 1 Video Output 4 ・ BNC x 1 3G-SDI (PGM)*1 ・ BNC x 1 3G-SDI (selectable from PGM / PVW / AUX)*1 ・ HDMI x 1 or Display Port (for GUI)*4 x 1 ・ Network output x 1 Network Video Output 1 selectable from MIX (PGM or PVW) / AUX ・ NDI®*1 output ・ RTMP format streaming output*6 Audio Output 6 ・ SDI embedded audio x 2 ・ 6.35 mm balanced line x 2 ・ 3.5 mm diameter, stereo mini jack x 1 ・ NDI®*1 embedded audio x 1 Effects and Transitions Wipe / Mix / Cut ・ Background Video ・ PinP ・ Title Audio Mixing ・ 4 ch. Master (Program) mix ・ 12 x faders: 1 for each of 8 external audio inputs, plus 1 x internal Clips player and 1 x Skype TX Talkback input; plus 1 x Master output and 1 x Headphones ・ Plus 1 x separate audio fader for video Streaming output ・ Seven-band equalizer and stereo compressor / limiter per input and output, with per-input audio delay control Video Clip Memory DDR x 1 ch*7 Still Store Memory DDR x 1 ch*7 Title Buffer 1 Title Buffer (displays 1 of 8 Buffer presets) Reference Input Internal only PTZ Camera Control (Via IP) Number of connected cameras: Up to 8 cameras Pan / Tilt / ZOOM / FOCUS control: 3 axis joystick (ZOOM / FOCUS is switched by pressing the upper button) ZOOM control: Independent rocker switch IRIS control: independent IRIS knob, pressed AUTO / manual switching FOCUS control: Independent FOCUS knob, pressed AUTO / manual switching Preset control: store / recall, up to 100 positions OSD menu control: OSD button*8 White balance control: GUI screen Camera menu or OSD screen (Auto / PST A / PST B / Execute)*8 CAM / BAR selection: GUI screen Camera menu or OSD screen*8 Tally Output DB-15 Tally port Network Connector RJ-45 x 2 1000BASE-T / 100BASE-TX / 10BASE-TX USB Host I/F USB3.0 x 4 Accessory AC adaptor, Power cable, keyboard, mouse Note * 1:NDI® is a registered trademark of Vizrt NDI AB in the United States and other countries. *2: 3G-SDI corresponds to Level-A only. *3: The 1080/59.94p and 1080/50p formats are not supported for HDMI input. *4: You cannot use the SDI input 1 and the HDMI connector at the same time. *5: HDMI and Display port can not be used simultaneously. *6: Only available when plug-in provided by NewTek is installed. *7: See “Supported Formats” on page 6 for details. *8: OSD function is available for Panasonic PTZ camera of SDI and HDMI output. It is not available for those of NDI® HX output. -

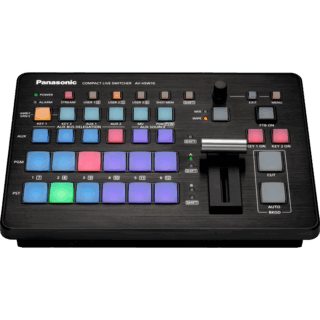

Compact Live Switcher AV-HSW10
Read moreVideo Input
3G-SDI 4 3
HDMI 1 2
SRT/NDI®|HX*1 2
NDI® High Bandwidth 2 (Alpha channels supported)
Video Output
3G-SDI 2
HDMI 1
NDI® High Bandwidth
SRT/RTMP 2
USB Video Class/
USB Audio Class*1 USB3.2 Gen.1 Type-C, 1ch
No BUS Power
YUY2 (Uncompressed)
Output-ready format:
1920 x 1080/60fps、50fps、30fps、25fps、24fps
1280 x 720/60fps、50fps、30fps、25fps、24fps
Video Format
3G-SDI 1080/59.94p, 50p, 29.97p, 25p, 24p, 23.98p
1080/59.94i, 50i, 720/59.94p, 50p
NDI® High Bandwidth 1080/59.94p, 50p, 29.97p, 25p, 24p, 23.98p
720/59.94p, 50p
NDI® HX 1080/60fps, 50fps, 30fps, 25fps, 24fps
720p/60fps, 50fps
Audio IN: RCA x 2, OUT: 3.5 mm TRS
Frame Synchronizer All inputs
CC/UC/DC (Input) i/P converter, DC/UC (1080-720P), CC
Keyer 2 (PinP, Linear key, Luminance key, Chroma key*2)
AUX 2
Genlock BB or Tri-level (Input/through output)
PTZ Link RP Link (AW-RP60/ RP150), TSL5.0
VMEM Still x 2
Shot MEM Max. 12 presets
USB USB2.0 Type-A (for USB Memory)
BUS Power
Dimensions (W x H x D)
(excluding protrusions) 254 mm x 175 mm x 67 mm
(10 inches x 6-7/8 inches x 2-5/8 inches)
Power Consumption 48 W
