Category: Converters
Showing 1–16 of 25 results
-

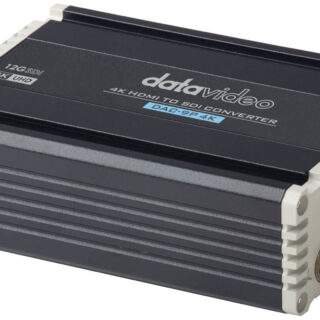

4K HDMI to 12G-SDI Converter DAC-9P 4K
Read moreConversion 4K HDMI to 12G/3G/HD/SD-SDI
Video Inputs 1x HDMI 2.0 Type A
Loop Through 1 x HDMI 2.0 Type A
Video Outputs 2 x 12G-SDI (3G-SDI Level A).
Audio Inputs 2 x RCA (Unbalanced Audio L/R), HDMI embedded audio, 24-bit, 8-channel
Audio Outputs SDI embedded audio, 24-bit, 8-channel
Audio Format Selection N/A
Audio Gain N/A
Supported Video Input Formats 4096x2160p: 60/50/30/25/24
3840x2160p: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50, 720p: 60/50
Output Resolutions Automatically matches the SD, HD and 4K HDMI video input
Equalizer N/A
Reclock Yes
SDI Cable Drive Yes
Updates and Configuration USB Type C
Dimension (LxWxH) 136.5 x 85 x 45 mm
Weight 0.39 kg
Operating Temp. Range 0~40 °C
Power DC 12V, 9.4W
What’s in the Box 1 x DAC-9P 4K, 1 x AD Switch DC 12V. -

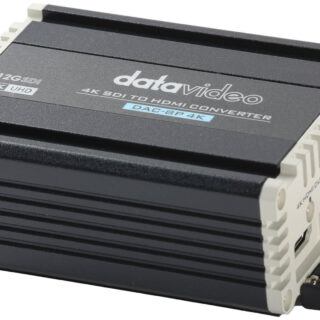

4K SDI to HDMI Converter DAC-8P 4K
Read moreConversion 12G-SDI to HDMI 2.0
Video Inputs 1x 12G-SDI
Loop Through 1
Video Outputs 1x HDMI 2.0 with embedded Audio
Audio Inputs SDI embedded audio, 24-bit, 16-channel
Audio Outputs RCA x 2 (Unbalanced Audio L/R), HDMI embedded audio, 24-bit, 8-channel
Audio Format Selection —-
Audio Gain —-
Supported Video Input Formats 4096x2160p: 60/59.94/50/30/29.97/25/24/23.98
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Output Resolutions Automatically matches the HD, 3G and 12G SDI video input
Equalizer Yes
Reclock Yes
SDI Cable Drive Yes
Updates and Configuration 1x USB Type C
Dimension (LxWxH) 112 x 85 x 45 mm
Weight 0.3 kg
Operating Temp. Range 0~40 °C
Power DC 12V, 8.64W
What’s in the Box 1x DAC-8P 4K -
4K Up/Down Cross Converter DAC-45
Read moreConversion VGA/HDMI/SDI to 4K HDMI/3G-SDI, Multi-format Up/Down/Cross
Video Inputs 1x VGA, 1x HDMI, 1x HD/SD-SDI, 1x Reference Input
Loop Through —-
Video Outputs 1x SDI, 1x HDMI
Audio Inputs 2xRCA(Unbalanced Audio L/R), 2x SDI/HDMI Audio embedded
Audio Outputs SDI embedded audio up to 8CH, 48KHz, PCM audio, HDMI embedded audio up to 8CH, 48KHz, PCM audio
Audio Format Selection —-
Audio Gain —-
Supported Video Input Formats 2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 576p, 576i, 525i, 480p, 480i, 1920×1080(60Hz), 1280×720(60Hz), 1600×1200(60Hz), 1400×1050(60Hz), 1366×768(60Hz), 1280×1024(60Hz), 1024×768(60Hz), 800×600 (60Hz)
Output Resolutions 2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 576p, 576i, 525i, 480p, 480i
Equalizer Yes
Reclock Yes
SDI Cable Drive Yes
Updates and Configuration Mini USB x 1
Dimension (LxWxH) 220 x 143 x 42 mm
Weight 1 kg
Operating Temp. Range 0~40 °C
Power DC 12V, 9.4W
What’s in the Box 1 x DAC-45, 1 x AD Switch DC 12V. -

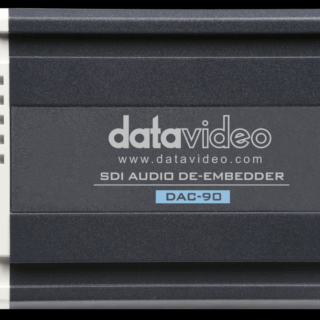

Converters SDI Audio De-embedder DAC-90
Read moreConversion
Audio De-embedder
Video Inputs 1 x 3G/HD/SD-SDI x 1
Loop Through —-Video Outputs 1 x 3G/HD/SD-SDI (Re-clocked Loop through)
Audio Inputs —-
Audio Outputs 4 x Mini XLR (Balanced)
Audio Format Selection SMPTE, EBU
Audio Gain —-Supported Video Input Formats —-
Output Resolutions —-
Equalizer —-
Reclock —-
SDI Cable Drive —-
Updates and Configuration 1 x Mini USB
Dimension (LxWxH) 112 x 85 x 45 mm
Weight 0.4 kg
Operating Temp. Range 0~40 °C
Power DC 12V, 0.5A
What’s in the Box
1 x DAC-90 product
1 x AD Switch DC 12V
2 x Mini XLR to male XLR cable. -

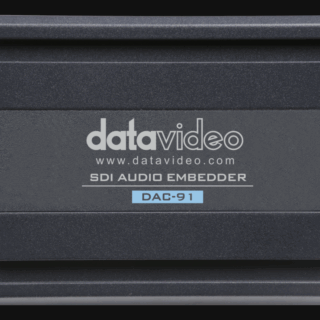

Converters SDI Audio Embedder DAC-91
Read moreConversion Audio Embedder
Video Inputs 1 x 3G/HD/SD-SDI
Loop Through —-
Video Outputs 2 x 3G/HD/SD-SDI
Audio Inputs 2 x Mini XLR (balanced), 2 x RCA (unbalanced)
* Mini XLR1 & RCA1 mixed to CH1
* Mini XLR2 & RCA2 mixed to CH2
Audio Outputs —-
Audio Format Selection SMPTE, EBU
Audio Gain Yes
Supported Video Input Formats —-
Output Resolutions —-
Equalizer —-
Reclock —-
SDI Cable Drive —-
Updates and Configuration 1 x Mini USB
Dimension (LxWxH) 112 x 85 x 45 mm
Weight 0.4 kg
Operating Temp. Range 0~40 °C
Power DC 12V, 0.5A
What’s in the Box 1 x DAC-91 product
1 x AD Switch DC 12V
2 x Mini XLR to female XLR cable. -

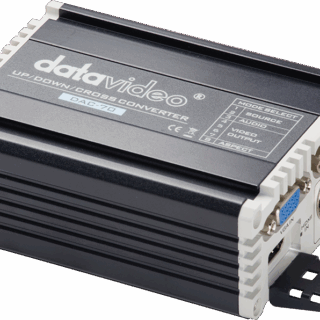

Converters Up / Down / Cross Converter DAC-70
Read moreConversion VGA/HDMI/SDI to HDMI/SDI
Multi-format Up/Down/Cross
Video Inputs 1x VGA, 1x HDMI,
1x 3G/HD/SD-SDI (support Level A and Level B)
Loop Through Yes
Video Outputs 2x 3G/HD/SD-SDI with embedded Audio (support Level A and Level B)
1x HDMI
Audio Inputs 2x RCA (Stereo Pair), 2x SDI/HDMI Audio embedded
Audio Outputs SDI embedded audio up to 8CH, 48KHz, PCM audio
HDMI embedded audio up to 8CH, 48KHz, PCM audio
Audio Format Selection —-
Audio Gain —-
Supported Video Input Formats 1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 576p, 576i, 525i, 480p, 480i, 1920×1080(60Hz), 1280×720(60Hz), 1600×1200(60Hz), 1400×1050(60Hz), 1366×768(60Hz), 1280×1024(60Hz), 1024×768(60Hz), 800×600 (60Hz)
Output Resolutions
1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 525i
Equalizer Yes
Reclock Yes
SDI Cable Drive Yes
Updates and Configuration 1 x Mini USB
Dimension (LxWxH) 112 x 85 x 45 mm
Weight 0.4 kg
Operating Temp. Range 0~40 °C
Power DC 12V, 6W
What’s in the Box 1 x DAC-70
1 x AD Switch DC 12V
1 x DIP switch Pin 8 label -

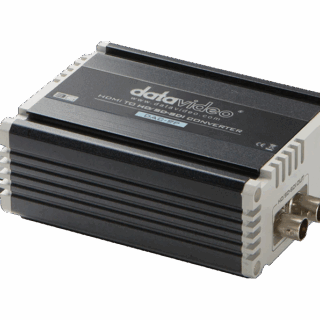

HDMI to SDI Converter DAC-9P
Read moreConversion HDMI to 3G/HD/SD-SDI
Video Inputs 1x HDMI
Loop ThroughVideo Outputs 2x 3G/HD/SD-SDI
with embedded AudioAudio Inputs 2x HDMI Audio embedded
Audio Outputs 2x SDI Audio embedded
Audio Format Selection
Audio Gain —-Supported Video Input Formats 1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
1080i (50/59.94/60Hz),
720p (50/59.94/60Hz),
576i (PAL), 480i (NTSC)
Output Resolutions Automatically matches the SD, HD and
3G HDMI video input
Equalizer —-
Reclock —-
SDI Cable Drive Yes
Updates and Configuration —-
Dimension (LxWxH) 112 x 85 x 45 mm
Weight 0.3 kg
Operating Temp. Range 0~40 °C
Power DC 12V, 5W
What’s in the Box 1 x DAC-9P
1 x AD Switch DC 12V -
Micro Converter BiDirectional SDI/HDMI 12G
Read moreConnections
SDI Video Inputs
1
SDI Video Outputs
Automatically matches the HDMI video input.
HDMI 2.0 Video Inputs
1 x type A.
HDMI 2.0 Video Outputs
1 x type A.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
Multi Rate Support
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates, Configurations and Power
USB Type‑C.
Reclocking
Yes
Power Requirements
Power Consumption
5W max.
Operational Voltage Range
4.4V to 5.25V DC
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing -

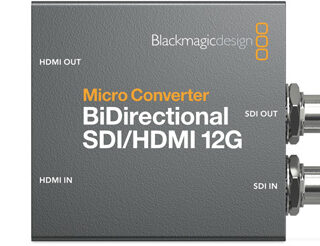

Micro Converter BiDirectional SDI/HDMI 12G wPSU
Read moreConnections
SDI Video Inputs
1
SDI Video Outputs
Automatically matches the HDMI video input.
HDMI 2.0 Video Inputs
1 x type A.
HDMI 2.0 Video Outputs
1 x type A.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
Multi Rate Support
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates, Configurations and Power
USB Type‑C.
Reclocking
Yes
Power Requirements
Power Supply
+5V universal power supply included with international socket adapters for most countries.
Power Consumption
5W max.
Operational Voltage Range
4.4V to 5.25V DC
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing -
Micro Converter BiDirectional SDI/HDMI 3G
Read moreConnections
SDI Video Inputs
1 x SD, HD or 3G-SDI.SDI Video Outputs
Automatically matches the HDMI video input.HDMI Video Inputs
HDMI Type A in.HDMI Outputs
HDMI Type A out.
Multi Rate Support
Auto detection of SD or HD.Updates, Configurations and Power
USB Type‑C.Reclocking
Yes -

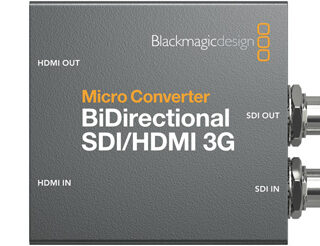

Micro Converter BiDirectional SDI/HDMI 3G wPSU
Read moreConnections
SDI Video Inputs
1 x SD, HD or 3G-SDI.SDI Video Outputs
Automatically matches the HDMI video input.HDMI Video Inputs
HDMI Type A in.HDMI Outputs
HDMI Type A out.Multi Rate Support
Auto detection of SD or HD.Updates, Configurations and Power
USB Type‑C.Reclocking
YesPower Requirements
Power Supply
+5V universal power supply included with international socket adapters for most countries.Power Consumption
2.5 WOperational Voltage Range
4.4 to 5.25V DCEnvironmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)Storage Temperature
-20° to 60° C (-4° to 140° F)Relative Humidity
0% to 90% non-condensing -

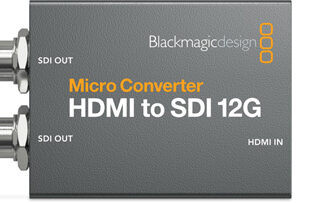

Micro Converter HDMI to SDI 12G
Read moreConnections
SDI Video Outputs
2
Automatically matches the HDMI input.
HDMI 2.0 Video Outputs
1 x type A.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
Multi Rate Support
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates, Configurations and Power
USB Type‑C.
Reclocking
Yes
Power Requirements
Power Consumption
4W max.
Operational Voltage Range
4.4V to 5.25V DC
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing -
Micro Converter HDMI to SDI 12G wPSU
Read moreConnections
SDI Video Outputs
2
Automatically matches the HDMI input.
HDMI 2.0 Video Outputs
1 x type A.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
Multi Rate Support
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates, Configurations and Power
USB Type‑C.
Reclocking
Yes
Power Requirements
Power Supply
+5V universal power supply included with international socket adapters for most countries.
Power Consumption
4W max.
Operational Voltage Range
4.4V to 5.25V DC
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing -
Micro Converter HDMI to SDI 3G
Read moreConnections
SDI Video Outputs
2 x SD, HD or 3G‑SDI.
Automatically matches the HDMI input.HDMI Video Inputs
HDMI Type A in.Multi Rate Support
Auto detection of SD or HD.Updates, Configurations and Power
USB Type‑C.Reclocking
YesPower Requirements
Power Consumption
2 WOperational Voltage Range
4.4 to 5.25V DCEnvironmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)Storage Temperature
-20° to 60° C (-4° to 140° F)Relative Humidity
0% to 90% non-condensing -

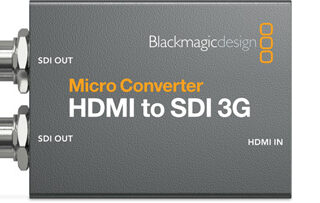

Micro Converter HDMI to SDI 3G wPSU
Read moreConnections
SDI Video Outputs
2 x SD, HD or 3G‑SDI.
Automatically matches the HDMI input.
HDMI Video Inputs
HDMI Type A in.
Multi Rate Support
Auto detection of SD or HD.
Updates, Configurations and Power
USB Type‑C.
Reclocking
Yes
Power Requirements
Power Supply
+5V universal power supply included with international socket adapters for most countries.
Power Consumption
2 W
Operational Voltage Range
4.4 to 5.25V DC
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing -

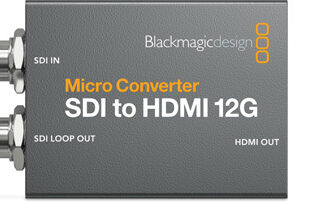

Micro Converter SDI to HDMI 12G
Read moreConnections
SDI Video Inputs
1
SDI Video Outputs
1 x loop out.
HDMI 2.0 Video Outputs
1 x type A.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
Multi Rate Support
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates, Configurations and Power
USB Type‑C.
Power Requirements
Power Consumption
4W max.
Operational Voltage Range
4.4V to 5.25V DC
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
